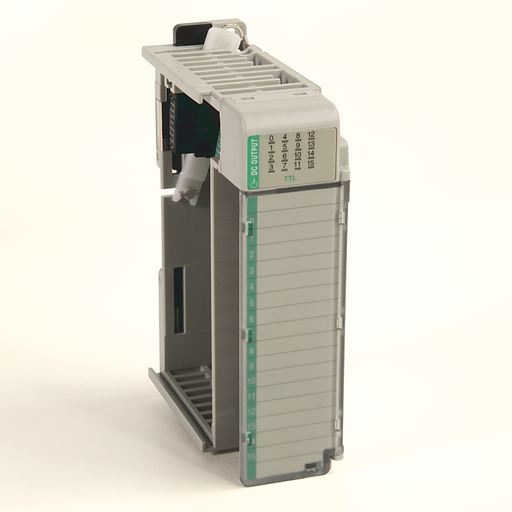

Allen Bradley 1769-OG16 5 VDC 16-Point TTL Compact GuardLogix I/O Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 1769-OG16 | Codale Part # 3502185
$679.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CompactLogix 16 Pt 5V TTL D/O Module

Technical Information

Display Type
Status LEDs
Mounting Type
DIN Rail,Panel Mount
Number of Channels
16
Operating Temperature
0 To 60 degrees C
Output Signal
4.5-5.5 V
Standard
CUL,GOST,KC,MARINE,UL
Type
Digital Output

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
CompactLogix

General Product Info

12-Digit UPC
662074455317
Product UPC
66207445531
Weight
0.5900 lb

Dimensions

Depth
3.43 Inch
Height
4.65 Inch
Width
1.38 in
