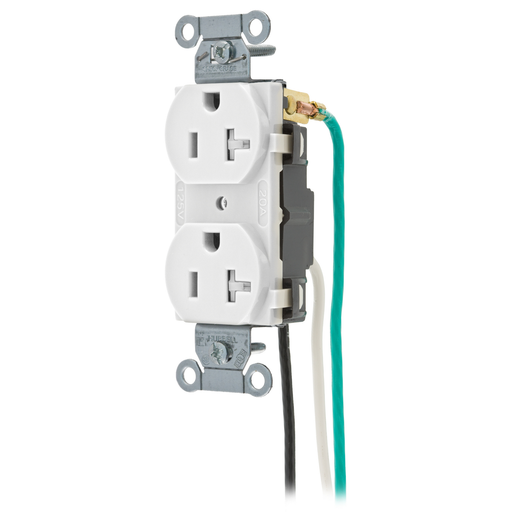

HWDK CR20WHITRP1 CR20WHITR W/ 8" SO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CR20WHITRP1 | Codale Part # 3502490
$20.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack, 8" Pre-Wired Solid Leads.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
1.32 in x 0.83 in x 3.28 in
Standard
UL,UL 498
Style
Smooth Face
Tc Connection
Solid Wire Leads
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585146683
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358514668
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy access split circuit tab
  • Single tab breakoff ears
  • Nylon face and base for durable construction
  • Tamper Resistant- Self Grounding
