Burndy MD64 Crimper, BG & D3 Grooves; 24" Straight Fiberglass Handles

Manufacturer: Hubbell-Burndy | Catalog # MD64 | Codale Part # 3504987
$1,679.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hytool, 31.50 in L, Weight-8lbs,forged steel jaw.

Technical Information

Applications
For use on:Copper, Aluminum, ACSR, Copperweld, Alumoweld, Steel, 6201 5005, Compressed and compact conductors, Copper Taps: #10 sol. - 2/0 str.,Aluminum, ACSR Taps: #14 sol. - 4/0 ACSR, Stirrups: #6 ACSR - 4/0 ACSR,Overhead Full Tension Deadend, Full Tension Splices, Non Tension Splices, and Terminals Conductor Range: #10 str. - 4/0 ACSR,Code conductor connectors: #6 - 4/0 str. Copper and Aluminum
Crimping Force
9000 LBS
Type
Crimpers

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810446058
Product UPC
78181044605
Weight
8.25 lb

Dimensions

Height
11-3/4 Inch
Length
31-1/2 Inch
Overall Length
31.5 in
Width
11 in

Certifications and Compliance

Country of Origin
USA
CSA
No

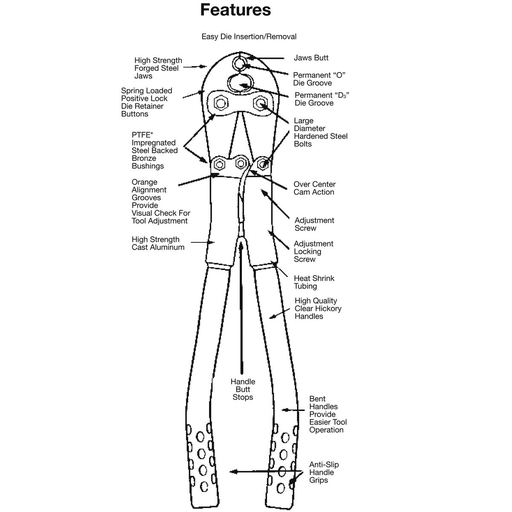

Features
  • Easy Die Insertion/Removal
  • High Strength Forged Steel Jaws
  • Spring loaded Positive Lock Die Retainer Buttons
  • PTFE Impregnated Steel Backed Bronze Bushings
  • Orange Alignment Grooves Provide Visual Check for Tool Adjustment
  • High Strength Cast Aluminum
  • Butting Jaws
  • Permanent \"O\" Die Groove
  • Permanent \"D3\" Die Groove
  • Fiberglass Rated At 100 KV Per Foot For 5 Minutes
