Burndy VVA342N CU VARILUG, Cable Range: 300 - 500 kcmil

Manufacturer: Hubbell-Burndy | Catalog # VVA342N | Codale Part # 3505034
$294.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
300-500 CU LUG 2 VEE BOL

Technical Information

Conductor Size
300 kcmil
Conductor Type
CU C Str-Size
Connection Type
0.187 inch, Spade (Fast-on) Terminal
Material
Copper
Number of Holes
2 Hole
Plated?
No
Plating Type
Unplated
Stud Size
1/2 in

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810005712
Product UPC
78181000571
Weight
2.1400 lb

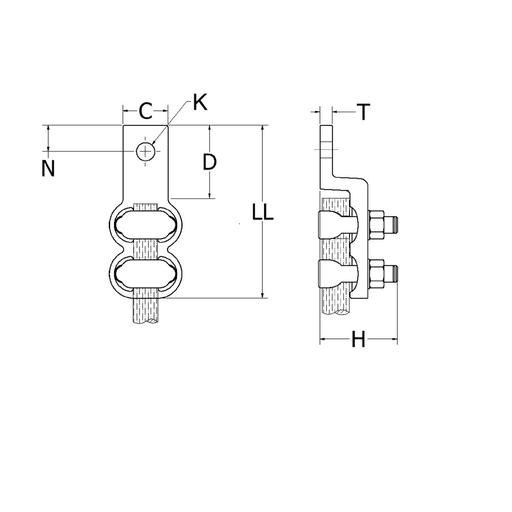

Dimensions

Diameter
3-5/8 Inch
Height
2.56 Inch
Hole Size
14 mm
Length
6.88 Inch
Overall Length
6.88 in
Pad Width
1.30 in
Thickness
3/8 in
Width
56 mm

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Type VVA VARILUG Terminals, for Copper Cable to Pad
  • Type VVA features twin elements to secure against vibration and flexing
  • High copper alloy terminal for joining a wide range of cable to equipment pads or bar
  • Particularly suitable for use on extra flexible cable
  • One-wrench installation
