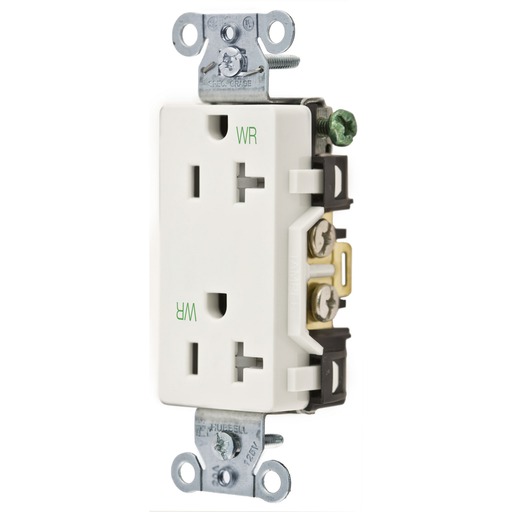

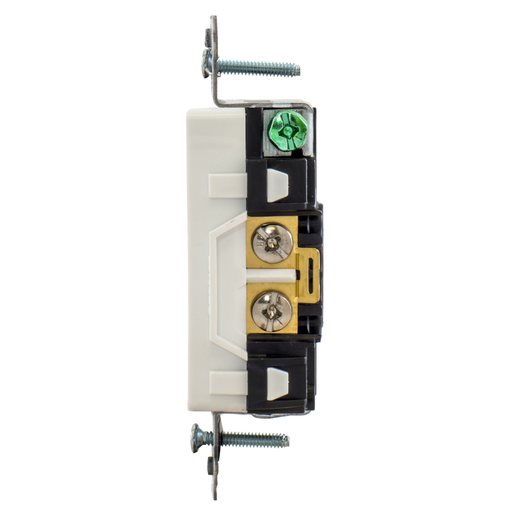

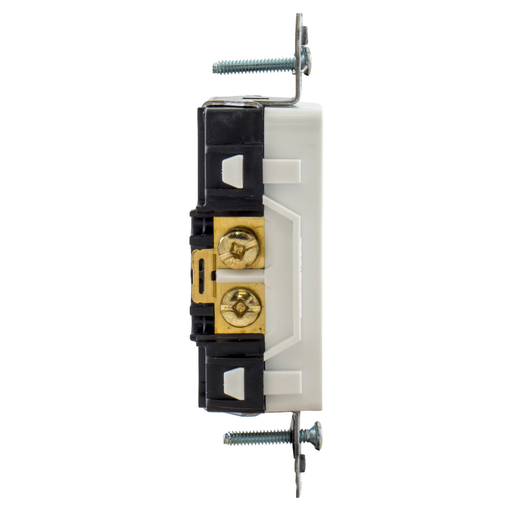

Hubbell DR20WHIWRTR WTR/TAMP RES, DECO FACE, 20A 125V, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR20WHIWRTR | Codale Part # 3505065
$6.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Tamper and Weather-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Style Line Decorator
Tamper Resistant?
Yes
Tc Connection
Back & Side Wired
Type
Traditional, Temper-Resistant, Decorator
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585144863
Color
White
Environmental Conditions
Weather Resistant
Product Series
Commercial Specification Grade
Product UPC
78358514486
Weight
0.22 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
1.07 in

Certifications and Compliance

Country of Origin
China
Features
  • Weather-resistance complies with national electrical code requirements
  • Tamper-resistant shutter complies with national electrical code requirements
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
  • Tamper Resistant
