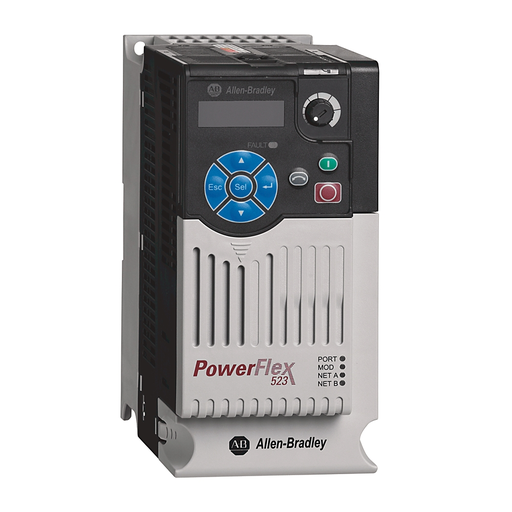

Allen-Bradley 25A-D010N104 Powerflex 523 4 kW 5 Hp AC Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 25A-D010N104 | Codale Part # 3505333
$1,371.65/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
PowerFlex 523 4kW (5Hp) AC Drive

Technical Information

Amperage
10.5 Amp
Applications
Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS
Enclosure Rating
1, IP20
Enclosure Type
NEMA 1, IP20
IP Rating
IP20
Output
10Amp
Output Current
10.5 A
Power Rating
4 kW
Size
B
Standard
C-TICK,CE,CUL,GOST,KC,UL
Type
AC Drive
Voltage
480 Volt
Wattage
4 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 523

General Product Info

12-Digit UPC
885630702520
Environmental Conditions
-20 to 50 C
Product UPC
88563070252
Weight
4.0500 lb

Dimensions

Depth
172 Inch
Width
87
Features
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Supports low-cost networking through an integrated RS485/DSI port
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
