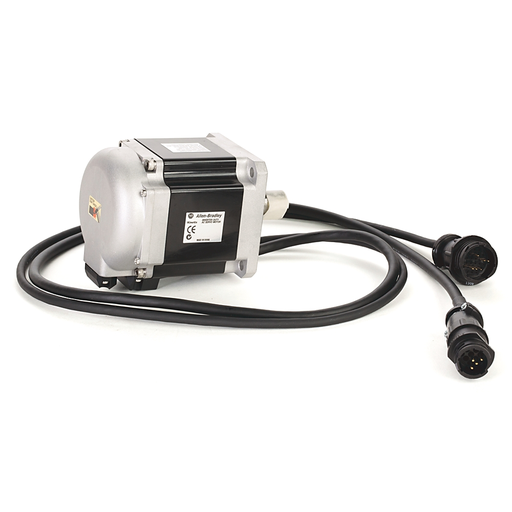

Allen Bradley TLY-A2530P-BJ62AA TL-Series 90mm Bolt No Brake Servo Mtr

Manufacturer: Allen Bradley / Rockwell | Catalog # TLY-A2530P-BJ62AA | Codale Part # 3505335
$1,667.62/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
TL-Series 90mm Bolt No Brake Servo Mtr

Technical Information

Applications
TL-Series
Enclosure
IP65 housing/ Shaft key/No shaft seal
Frame
90 mm (3.54 in.) or NEMA 34
Mounting Type
90 Mm Bolt Circle Metric Flange
Power Rating
0.69 kW
RPM
5000 rpm
Standard
C-TICK,CE,KC
Temperature Rating
0 degrees C to 40 degrees C
Torque Rating
2.6
Type
Rotary, Current Synchronous
Voltage
230 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
TL-Series™

General Product Info

12-Digit UPC
820919822094
Product UPC
82091982209
Weight
6.0700 lb
Features
  • UL Recognized to applicable UL and CSA standards, and CE marked for applicable directives
  • Integral 24V brake option
  • 24-bit high-resolution feedback
  • Integral 24V DC brake option
  • Optimized to match with drive ratings for optimum system sizing
  • Tight position control with 17-bit resolution
  • Single-turn and multi-turn (battery required) option with one physical feedback device
  • Optimally designed with Kinetix® 5100 servo drive for system performance
  • Provides an economy solution to meet wide ranges of applications
  • Rated power from 50 W to 15 kW
  • Available in 8 frame sizes: 46, 70, 90, 100, 115, 145, 200, 235 mm
