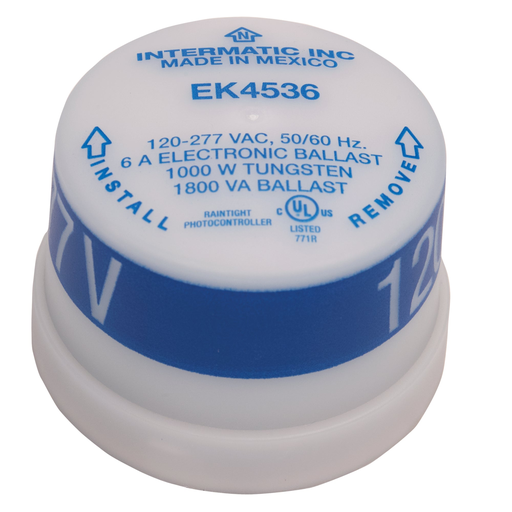

Intermatic EK4536 120 to 277 VAC 1000 W Locking Type Mount Select Grade Electronic Photocontrol

Manufacturer: Intermatic | Catalog # EK4536 | Codale Part # 3508201
$30.45/ea
ea
Log in or register to view your price, purchase history, and more!
44 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.

Technical Information

Amperage
6000 mA
Applications
Outdoor Lighting Control
Connection Type
Lock Type
Dielectric Strength
2500 VAC
Enclosure
NEMA 410
Frequency
50/60 Hz
Material
Polycarbonate
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Locking Type
Mounting Type
NEMA Twistlock
Operating Cycles
10k
Operating Temperature
158 degrees F
Power Consumption
<0.5 WTT @ 277 VAC
Sensor Type
Electronic photocontrol
Size
2.97 DIAMETER X 2.721 HEIGHT IN, 75.4 DIAMETER X 69.11 HEIGHT MM
Standard
ANSI C136.24 Compliant,CSA Certified To Canadian,RoHS Compliant,Title CA 20 Listed
Tc Connection
Lock Type
Temperature Rating
-40 to 70 degrees C
Type
Cylinder Plain, Select Grade
Voltage
277 Volt
Wire Length
0 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275130173
Color
White With Blue Band
Finish
Plastic
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827513017
Used With
Lighting, pathways
Weight
0.25 lb

Dimensions

Height
2-3/4 Inch
Warranty Length
8 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • All components meet 15-year life expectancy
  • Conformal coated PCB
  • Exceeds 10,000 ON/OFF switching cycles
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 510 J MOV surge protection
  • High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
  • NA
