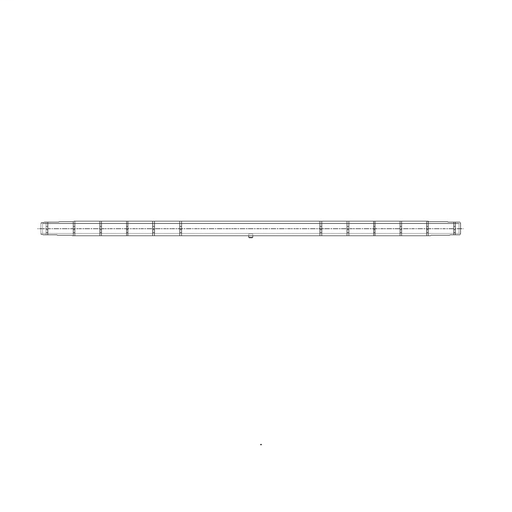

Image thumbnail 2
Image thumbnail 3
Email

Burndy YDS27R 2-piece, full tension ACSR splice consists of steel inner sleeve and AL outer sleeve, ANSI C1194 Class 1 (Full Tension), Conductor: 3/0 (6/1) Pigeon

Manufacturer: Hubbell-Burndy | Catalog # YDS27R | Codale Part # 3508811
$182.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
2-piece, full tension ACSR splice consists of steel inner sleeve and AL outer sleeve, ANSI C119.4 Class 1 (Full Tension), Conductor: 3/0 (6/1) Pigeon.

Technical Information

Applications
For ACSR, Compressed And Compact Conductors
Connection Type
Splice
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size
16-3/4 IN Aluminium Sleeve Length X 5-1/4 IN Steel Sleeve Length
Type
YDS-R SET

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
621945518704
Color
Black
Product UPC
78181001555
Weight
0.5800 lb

Dimensions

Height
0.78 Inch
Length
5-1/4 Inch
Overall Length
133 mm
Width
0.78 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • 2-Piece, Full Tension HYSPLICE consists of aluminum outer sleeve and steel inner sleeve
  • Tapered out sleeve provides gradual transition of stress
  • Filler hole provided for PENETROX Joint Compound
  • Sizes 1/0 and larger come supplied with plugs for filler hole
