Burndy YA30LB Bellug-4/0&250Fx-1/2 Std

Manufacturer: Hubbell-Burndy | Catalog # YA30LB | Codale Part # 3509155
$43.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

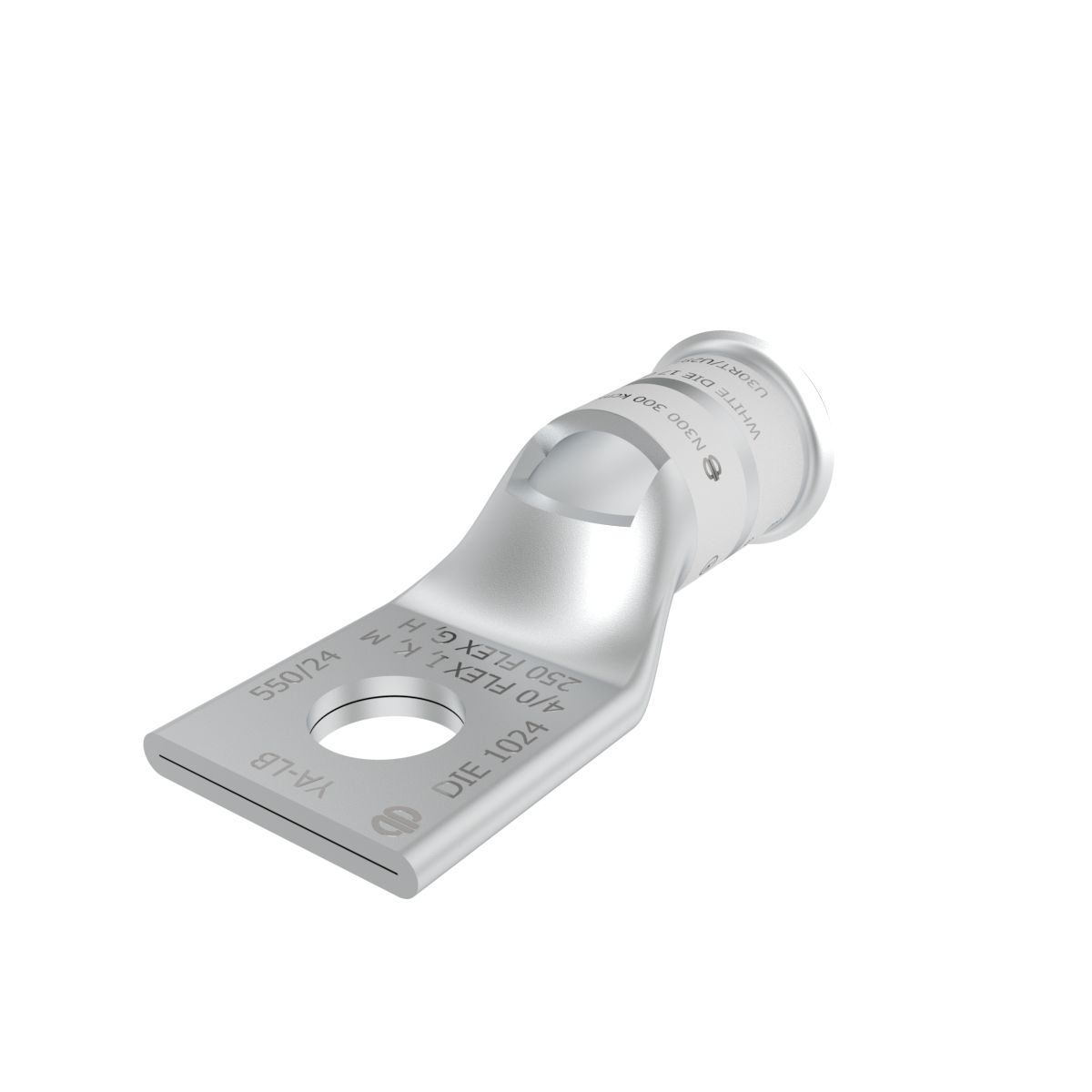

Copper Compression Lug, 1 Hole w/ Inspection Window, 4/0 Flex-250 Flex, 1/2" Stud, Short Barrel, Belled End, Tin Plated.

Technical Information

Applications
For Flex Conductor
Cable Size
Flexible Copper: 4/0 AWG, 250 KCMIL, Welding Cable, Class M (#34 STR): 4/0 AWG (5320 Strands), Locomotive: 4/0 AWG (550/24 Strands), Battery Cable, Class K (#30 STR): 4/0 AWG (2107 Strands), Class I (#24 STR): 4/0 AWG (532 Strands), G: 250 KCMIL (259 Strands), H: 250 KCMIL (427 Strands)
Color Coding
White
Conductor Material
Copper
Conductor Size
300 kcmil
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.5 in
Type
Standard Belled Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810504871
Color
White
Finish
Tin Plated
Product UPC
78181050487
Weight
0.1650 lb

Dimensions

Height
0.81 Inch
Hole Size
13 mm
Length
2.82 Inch
Overall Length
2.82 in
Width
1.20 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U30D-1 Die Nest, Y34PR2 Die Indentor, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Die Index: 1024, Wire Strip Length: 1-1/8 IN
