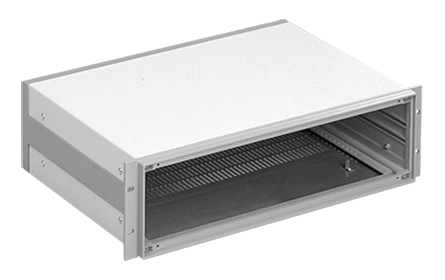

Hoffman ERC3U4837 19 Inch 3-Rack Unit Rack Mount/Desktop Case

Manufacturer: nVent Hoffman | Catalog # ERC3U4837 | Codale Part # 3509690
$618.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
19 in Rack Mtg/Desktop Case 3U, Bulletin DEC1 (Electronic Cabinets and Cases), Size/Dims: 133x483x375mm, Material/Finish: Alum/Steel

Technical Information

Applications
Desktop cases house circuit boards and other electronic equipment in a rigid framework with easy front and rear access. Rack cases are 19-in. rack mountable with integral mounting provided in the front bezel.
IP Rating
IP20
Material
Aluminum
NEMA Size
1
Standard
DIN 41494 Part 1,EIA 310-D / IEC 297-1,Exterior Dimensions,IEC 60529,IP20,NEMA Type 1
Type
19-in. Rack-Mount/Desktop Case, Type 1

Packaging

Shipping Weight
11.88 lb

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510395605
Product UPC
78351039560
Weight
11.8800 lb

Dimensions

Depth
14.8 cm
Height
5.2 Inch
Width
19 in
Application
  • Desktop cases house circuit boards and other electronic equipment in a rigid framework with easy front and rear access. Rack cases are 19-in. rack mountable with integral mounting provided in the front bezel.
Finish
  • Framework has an RAL 7030 stone-gray textured finish. Top and bottom covers have an RAL 7035 light-gray textured finish on the outside and a plated finish on the inside.
Specifications
  • One-piece aluminum die cast front bezel and rear bezel are connected front-to-back with aluminum extrusions to form a rigid structural framework.
  • Sides on 3U- and 4U-tall cases are the aluminum front-to-back extrusions. The 6U-tall case has two aluminum extrusions with a steel middle panel on each side.
  • Covers are 1-mm steel and have grounding provisions.
Features
  • Removable top and bottom covers attach directly to case framework for maintenance convenience
  • Bottom cover has multiple rows of holes for ventilation
  • Front bezel includes mounting provisions for 19-in. rack mounting as well as mounting for front panel options for application flexibility
  • Top and bottom of framework have mounting provisions for optional support rails for application flexibility. Mounting holes are spaced on 10-mm centers front to back.
  • Case framework is assembled for quick installation. Top cover, bottom cover, anti-skid feet and mounting hardware are included.
  • Mounting hardware for optional front and rear panels are included with case for installation convenience
