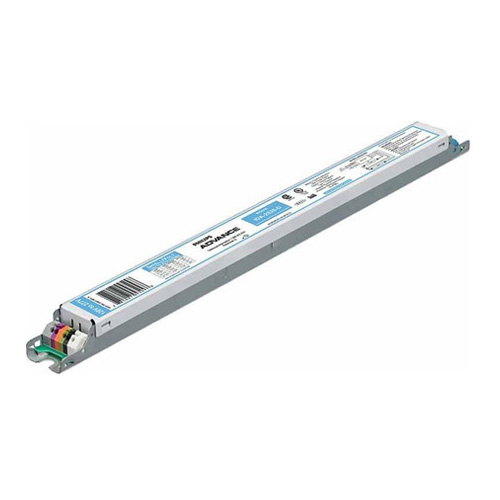

Product image for Philips Advance IZT2S54D35M 120 to 277 VAC 50/60 Hz 54 W 2-Lamp Electronic Dimming Ballast
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Philips Advance IZT2S54D35M 120 to 277 VAC 50/60 Hz 54 W 2-Lamp Electronic Dimming Ballast

Manufacturer: Signify Lamps | Catalog # IZT2S54D35M | Codale Part # 3510671

$248.71/ea
ea
Order in multiples of 12 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
The Mark 7 0–10V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.

Technical Information

Applications
Lighting Luminaire Component
Ballast Factor
1
Ballast Type
Dimmable Fluorescent
Bulb Shape
T5
Conductor Size
18 AWG
Frequency
50/60 Hz
Input Voltage
120/277 V
Lamp Type
Fluorescent
Lamp Wattage
54 W
Number of Lamps
2
Power Factor
0.98
Power Rating
54 WTT
Start Type
PROGRAMMED START
Thermal Protection
CLASS P
Voltage
120-277 Volt
Wire Size
18 AWG
Wire Type
Solid

Manufacturer Information

Brand
Philips Lighting
Sub Brand
Mark 7

General Product Info

12-Digit UPC
781087132159
Housing Material
Metal
Product UPC
78108713215
Weight
1 LB

Dimensions

Height
1 Inch
Length
16.34 Inch
Width
1.18 in
