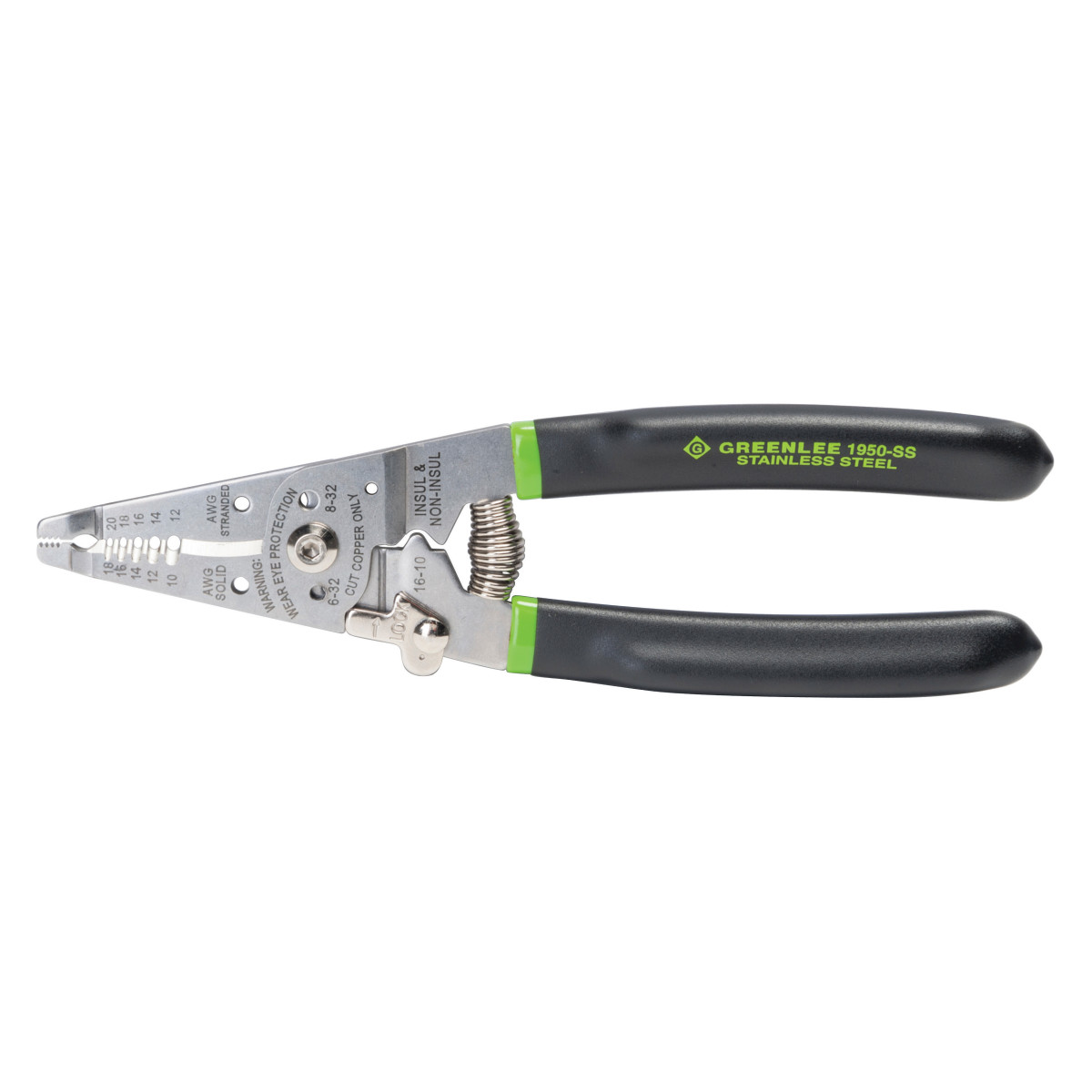

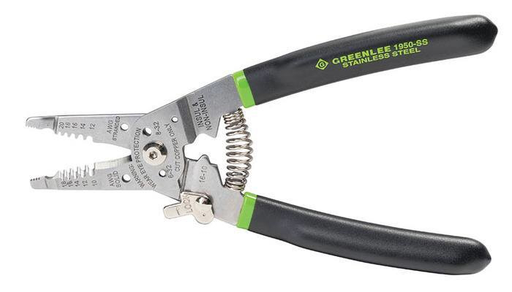

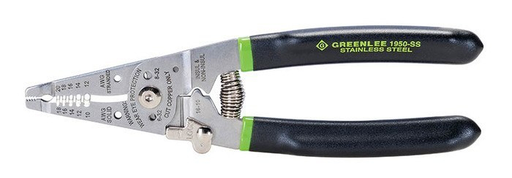

Greenlee 1950-SS 18 to 10 AWG Black Stainless Steel Spring Return Wire Stripper/Cutter/Crimper

Manufacturer: Greenlee | Catalog # 1950-SS | Codale Part # 3511507
$70.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
SS WIRE STRIPPER PRO (10-18AWG)(1950-SS). Cat #: 1950-SSUPC #: 783310022411High grade stainless steel lasts 5X longerPrecision ground stripping holes offer easy, consistent jacket removalStrips 10-18 AWG Solid and 12-20 AWG Stranded conductorsCleanly shears 6 - 32 and 8 - 32 boltsCrimps 16 - 10 insulated and non-insulated terminalsMultiple functions include plier nose, strippers, cutter, looping holes, crimper, bolt re-thread/shear and spring back with low profile lockHigh grade knives resist chipping and marringLooping holes and serrated nose for bending, pulling and shaping wiresLong-life spring and low-profile lock for quick, repetitive stripping and cuttingVinyl cushion grip resists slipping and has an ergonomic fit

Technical Information

Applications
For Stripping, Cutting and Crimping Wire Conductors
Capacity
10-18 AWG Solid, 12-20 AWG Stranded
Conductor Size
18-10 AWG/20-12 AWG
Handle Type
Extended, Straight, Vinyl Cushion Grip
Jaw Type
Plier-type nose with precision ground stripping holes and cutter
Material
Stainless Steel
Type
Manual Fixed Hole, Spring and Lock
Wire Size
10-18 AWG Solid, 12-20 AWG Stranded

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310022411
Finish
Laser Etched and Stamped
Product UPC
78331002241
Weight
0.3 oz 8.5 g

Dimensions

Overall Length
7-1/2 in

Certifications and Compliance

Country of Origin
Taiwan
Features
  • High grade stainless steel lasts 5X longer
  • Precision ground stripping holes offer easy, consistent jacket removal
  • Strips 10-18 AWG Solid and 12-20 AWG Stranded conductors
  • Allows linemen to cleanly shear 6 - 32 and 8 - 32 bolts
  • Crimps 16 - 10 insulated and non-insulated terminals
  • Multiple functions include plier nose, strippers, cutter, looping holes, crimper, bolt re-thread/shear and spring back with low profile lock
  • High grade knives resist chipping and marring
Application
  • Stripping, Cutting and Crimping Wire Conductors
