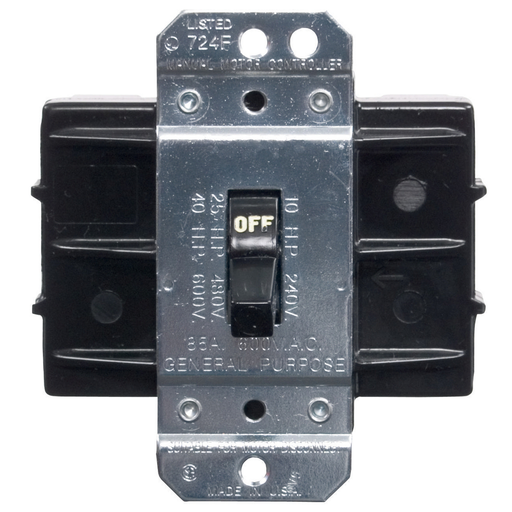

Product image for HWDK HBL7882D DISCONNECT 85A 600V 2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 5
Email

HWDK HBL7882D DISCONNECT 85A 600V 2

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7882D | Codale Part # 3511866
$310.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 80A 600V AC, Back and Side Wired

Technical Information

Amperage
85 Amp
Applications
Motor Starting without Overload Protection
Current
85 Amp
Enclosure Type
None
Horsepower
20 hp
Material
Stainless Steel
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Operating Temperature
-40 degrees C
Power Rating
51,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C
Type
Open Switch, Standard Toggle
Voltage
600 Volt
Wattage
51000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202921
Product Series
Standard Toggle
Product UPC
78358520292
Weight
0.75 lb

Dimensions

Height
3.178 Inch
Length
3.798 Inch
Width
3.178 in

Certifications and Compliance

Country of Origin
USA
Features
  • Front and back wiring with steel screws and copper terminals
  • Recessed wiring wells for finger safe environments
  • Thermoset body withstands high temperatures
  • Standard Product
