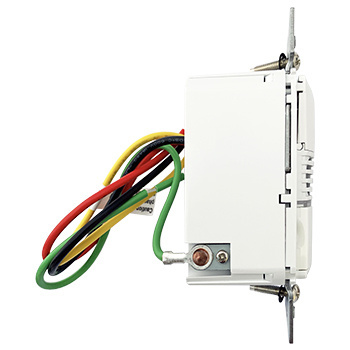

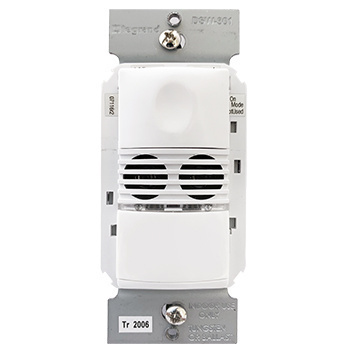

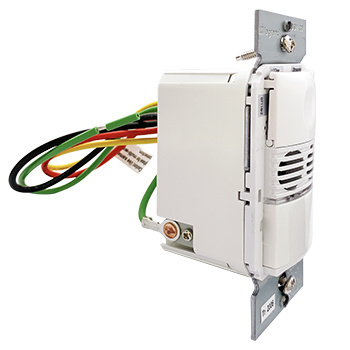

Wattstopper DSW-301-W Dual Technology Wall Switch Occupancy Sensor, 120/277V - White

Manufacturer: Legrand WattStopper | Catalog # DSW-301-W | Codale Part # 3512422
$167.91/ea
ea
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Not in local stock *
Check your local branch

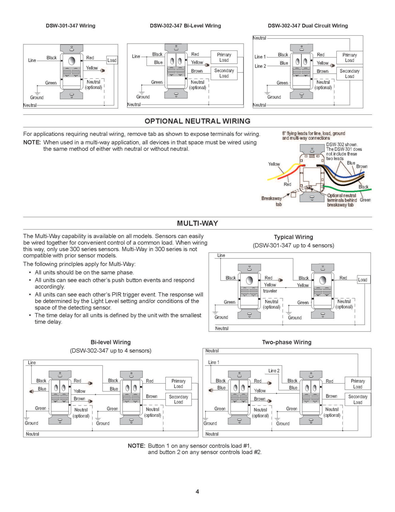

Primary Spec Sheet Installation / Instruction Manual
The DSW-301 Dual Technology Wall Switch Occupancy Sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate. (white)

Technical Information

Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Connection Type
Wired
Indicator
True
Load Rating
1200 W @ 240/277 VAC, 1000 W @ 120 VAC
Material
Plastic
Mounting Type
Surface
Number of Connections
4.0
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor, Push
Type
Dual Technology, Wall Switch
Voltage
120/277 VAC
Wattage
1200 Watt

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935444
Color
White, Gloss
Finish
Matte
Product UPC
75418293544
Weight
0.4500 lb

Dimensions

Depth
1.83 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.76 in

Certifications and Compliance

Country of Origin
China
Features
  • Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds
  • Test mode allows quick and easy adjustments
  • Selectable audible alert for impending shutoff
  • In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually
  • ideal for presentations
  • Four occupancy logic options to customize control to meet application needs
  • Zero-crossing for long relay life
  • Vandal resistant lens combines precise coverage with durability
