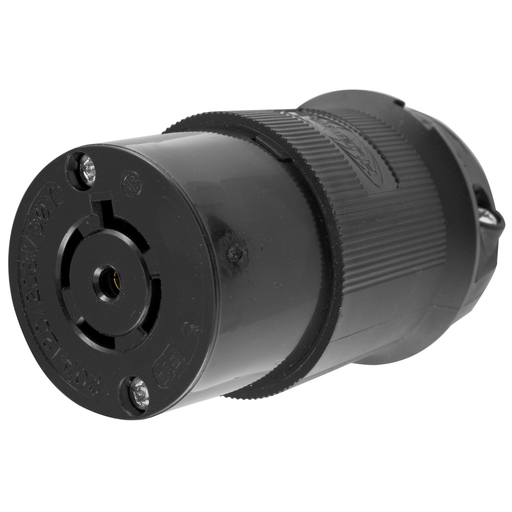

Hubbell HBL2513BK Locking Connector, 20A 120/208V, L21-20R, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CX62 | Codale Part # 3513166
$83.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Insulgrip® Connector, 20A, 3 Phase Y 120/208V AC; 4 Pole, 5 Wire Grounding, NEMA L21-20R, All black nylon.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Current
20 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Cord
NEMA
L21-20R
Number of Conductors
5-Wire Grounding
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Insulated
Voltage
120/208 Volt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
800835340506
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Housing Material
Black Nylon
Product UPC
80083534050
Weight
0.35 lb

Dimensions

Height
2.33 Inch
Length
3.86 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
