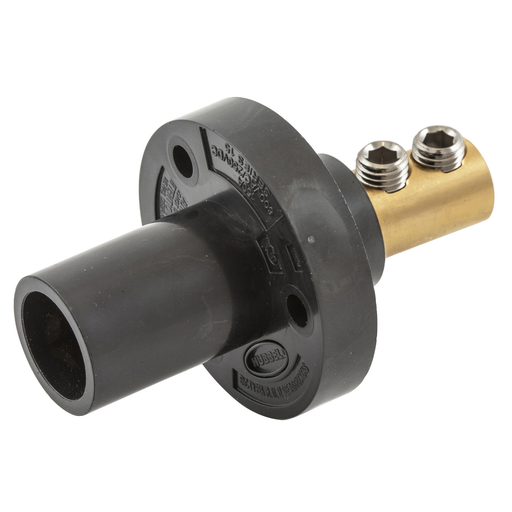

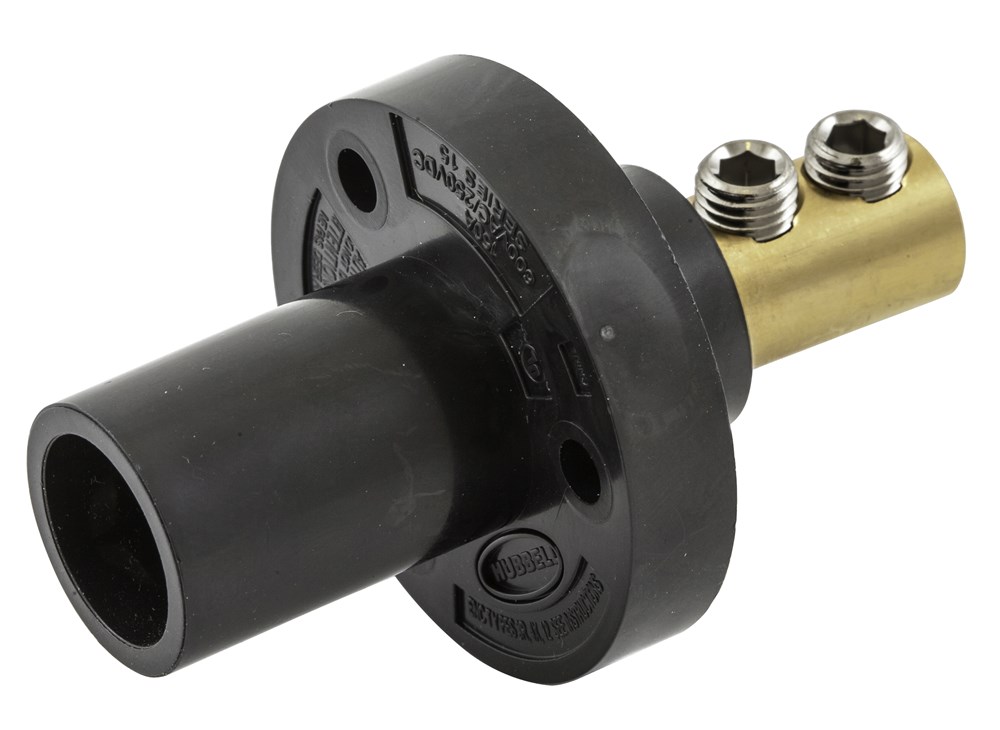

Product image for HWDK HBL15MRBK SINGLE POLE SER 15 I
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBL15MRBK SINGLE POLE SER 15 I

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL15MRBK | Codale Part # 3513173
$109.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Single Pole Products, Male Inlet, Double Set Screw Termination, 150 Amp Series, Black

Technical Information

Amperage
150 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
4 AWG
Current
150 Amp
Material
Brass
Number of Phases
1 Phase
Number of Poles
1-1 Pole
Size
Standard Sized Product
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Double Set Screw Male
Tc Connection
Double Set Screw
Type
Receptacle
Voltage
250//600 VDC//VAC
Wattage
90000 Watt
Wire Size
4 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Single Pin Devices

General Product Info

12-Digit UPC
783585458120
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Series 15
Product UPC
78358545812
Weight
0.2500 lb

Dimensions

Height
2 Inch
Length
8 Inch
Width
1.880 in

Certifications and Compliance

Country of Origin
China
Features
  • Double Set Screw Termination
  • 150 Amp Series
  • Black
  • Standard Product
Compare
