PAN UTPCH2BLY Cat 5e 24 AWG UTP Cop

Manufacturer: Panduit | Catalog # UTPCH2BLY | Codale Part # 3513485
$26.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

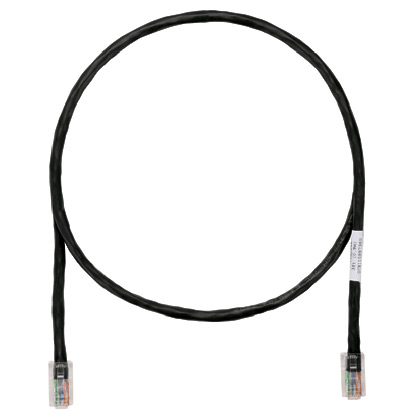

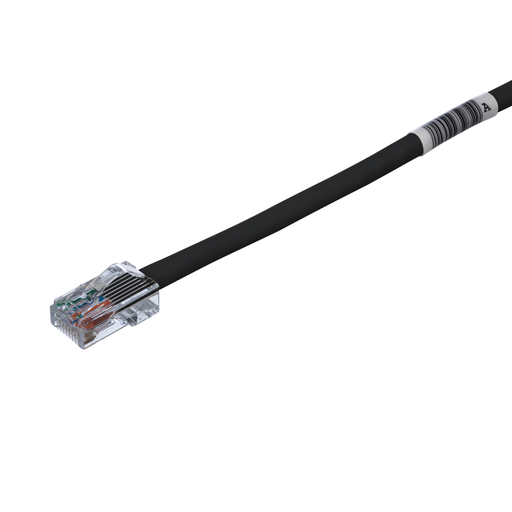

The TX5e™ Cat 5e UTP Patch Cord is a 2-Foot, Black cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, Token Ring 4/16, Voice/Data Systems, Voice Over Internet Protocol (VoIP)
Boot Color
No Boot
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 5e
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
140 degrees F
Type
Category 5e
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983165254
Color
Black
Jacket Material
Polyvinyl Chloride
Product UPC
07498316525
UNSPSC
43223303
Weight
0.1300 lb

Dimensions

Cable Length
2 ft
Length
2 Inch
Outer Diameter
0.21 in
Outside Diameter
5.3 mm
Overall Length
2 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
