Leviton 41084-FEF 75 Ohm Nickel Plated Black Plastic Female-to-Female Screw-On Feed-Through F-Connector

Manufacturer: Leviton | Catalog # 41084-FEF | Codale Part # 351349
$5.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
Nickel or gold-plated female-to-female 75 ? connector features screw-on front and rear connections. Pass through design applications: TV, VCR, DVD, satellite, and home theater. Cable: coaxial cable terminated with "F" plugs. QUICKPORT F-Type Adapters snap into any QUICKPORT housing, including flush- and surface-mount outlets, Multimedia Outlet System (with adapter), Decora® Inserts, patch panels, and patch blocks

Technical Information

Applications
Commercial
Body Material
High-Impact Fire-Retardant Plastic
Connection Type
Screw, Snap-In
Flamability Class
Rated V-0 Per UL 94
Impedance
75 ?
Installation
Surface, Flush
Insulation Material
Incorrect
Material
Brass
Mounting Type
Flush,Surface
Size

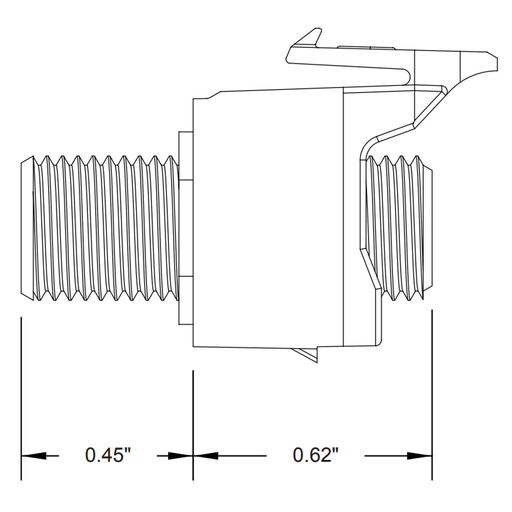

0.64 H x 0.58 W x 1.24 D IN
Standard
CULus Listed,UL Listed
Tc Connection
Snap-In
Type
Quickport F-Type Adapter

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, QuickPort

General Product Info

12-Digit UPC
078477820056
Color
Black
Environmental Conditions
UL 94 Requirements, V0 Rated Flammability
Product UPC
07847782005

Certifications and Compliance

Country of Origin
Taiwan
Features
  • Compatible with all QuickPort wallplates and housings
  • Frequency range equals DC-3.0 GHz
  • Female-female adapter for quick screw-on connections
  • 360-degree gold-plated seizing pin
  • 75 ohm impedance
