Hubbell HBL5266CM2CAT HBL5266C, COLOR MOD, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5266CM2 | Codale Part # 3514606
$61.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A125V, 5-15P, Black, Single Pack.

Technical Information

Amperage
15 Amp
Applications
For Stage/Studio Power, Portable Power Distribution, Lighting, On-Location Filming, Carnivals, Theme Parks
Conductor Size
18-10 AWG
Cord Size
0.22 - 0.66 in
Current
15 Amp
Grounding
Yes
Material
Nylon
NEMA
L5-15
Number of Poles
2 Pole
Number of Wires
3 Wire
Standard
C22.2 No. 42 File 280,CSA,Fed. Spec. W-C596G,NEMA® WD-6,UL,UL498 File E1706
Temperature Rating
-40 to 75 degrees C
Type
Heavy Duty, Polarized
Voltage
125 Volt
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585848501
Color
Black,White
Product Series
Insulgrip
Product UPC
78358584850
Weight
0.15 lb

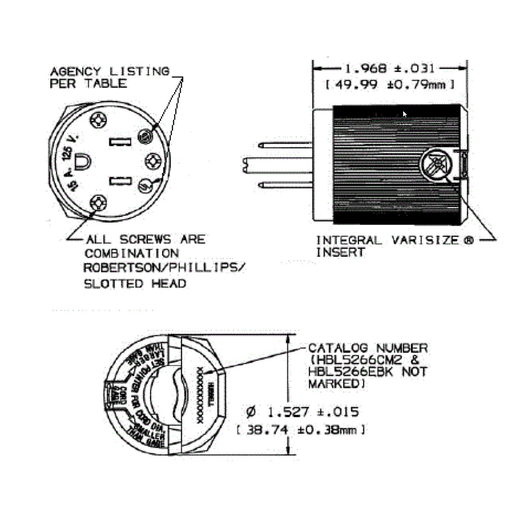

Dimensions

Height
1.96 Inch
Length
1.52 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
