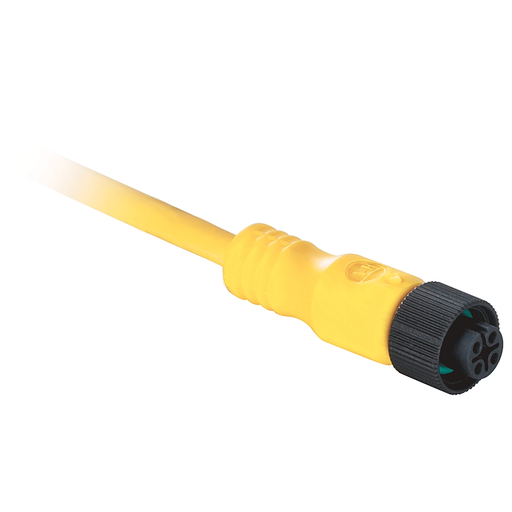

Product image for Allen Bradley 888D-M8AB3-1 DC Micro (M12) receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 888D-M8AB3-1 DC Micro (M12) receptacle

Manufacturer: Allen Bradley / Rockwell | Catalog # 888D-M8AB3-1 | Codale Part # 3515284
$58.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
DC Micro (M12) Receptacle

Technical Information

Applications
PG9
Conductor Size
24 AWG
Connection Type
M12 DC Micro
Material
Aluminum
Number of Conductors
8-Pin
Number of Pins
8
Number of Poles
8 Pole
Standard
CCC
Tc Connection
DC Micro (M12)
Type
Receptacle
Wire Size
24 AWG

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
781180693700
Color
IEC Color Code
Product UPC
78118069370
Weight
0.0950 lb

Dimensions

Length
3.3 Foot
Features
  • Provides standard US automotive color code
  • Includes male and female bulkhead receptacles
  • Provide for Safety PLC input expansion
  • Support systems up to Category 3 (per EN954-1)
  • Includes female bulkhead receptacles
  • Allows field installation with no hand tools needed
  • Includes PG9
  • Includes I.E.C. color code
  • Reduce installation cost
  • Provides 12-pin configuration provides standard connectivity
  • Includes standard 12-inch lead (additional lengths available)
  • Ease system expansion
  • Provides a Viton® o-ring
  • Allows easy modification of existing cable installations
  • One piece molded design construction
  • Includes female and male bulkhead receptacles
  • Cabling options include cordsets and patchcords
  • Simplify troubleshooting
  • Control power tees offer flexibility in system design
  • Includes 1/2 in. 14 NPT threads
  • Connectors are straight or right-angled and are physically keyed to prevent wiring mishaps
  • Includes 22 AWG conductors
  • Promote system modularity
  • Male receptacles can be used for a quick disconnect at the ArmorStart® Distributed Motor Controller with gland plate design
  • Includes 16 AWG conductors
  • Female receptacles can be used for a panel mount connection
  • Receptacles provide termination points at the panel and at the ArmorStart® Distributed Motor Controller
  • Includes mounting nut and rubber sealing washer
  • Includes M20 x 1.5 mounting threads for convenient mounting to safety switches
  • Includes standard 22 AWG conductors
  • Includes M8 x 0.5 mounting threads for convenient installation
  • Includes a connector shell design that accommodates threaded male connector types only
  • Includes anodized aluminum shell
