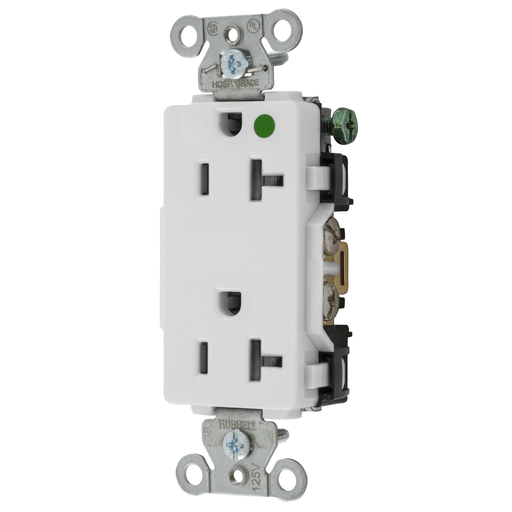

Product image for Hubbell 2182W Straight Blade Device, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell 2182W Straight Blade Device, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 2182W | Codale Part # 3515671
$37.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White.

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty Hospital Grade
Base Material
PBT,PBT
Conductor Size
12-10 AWG
Contact Material
Brass
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.57 in x 1.15 in
Standard
CSA,E2186,UL
Style
Style Line Decorator
Tc Connection
Screw, 6 Terminals
Type
Duplex Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585196602
Color
White
Environmental Conditions
Indoor Only
Product Series
Hubbell-Pro
Product UPC
78358519660
Weight
0.2 lb

Dimensions

Height
1.15 Inch
Length
3.28 Inch
Width
1.57 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Triple wipe contacts
  • High impact resistant decorator face
  • Steel mounting strap
  • Self Grounding, USA Product
