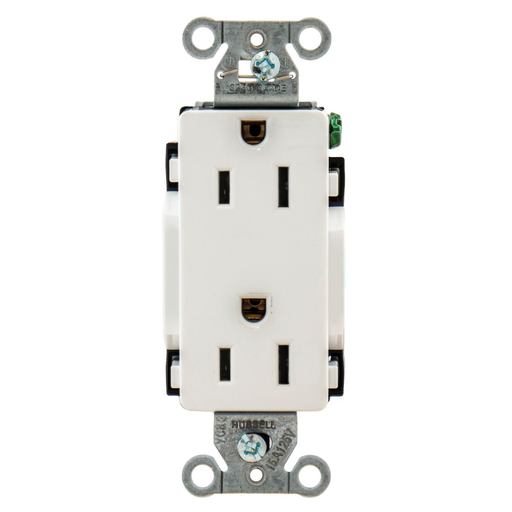

Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Hubbell DR15WHI 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R White Decorator Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR15WHI | Codale Part # 3515705
$4.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tc Connection
Back and Side Wired
Type
Decorator
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 W

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127828
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358512782
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.29 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
