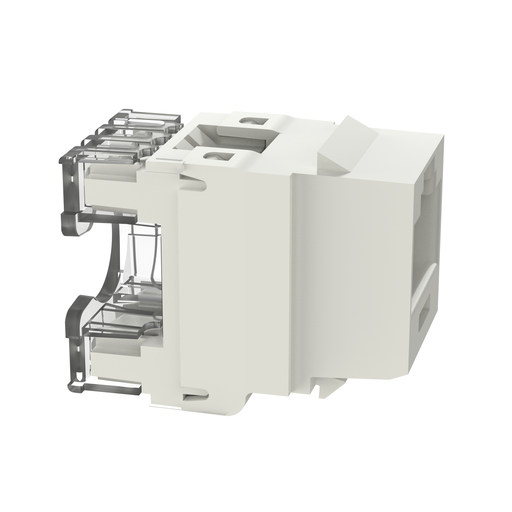

Panduit NK688MIW-Q NetKey Cat 6 Punchdown Jack, Int'l White - Pack of 25

Manufacturer: PANDUIT | Catalog # NK688MIW-Q | Codale Part # 3516438
$15.89/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is international white and includes 25 per package.

Technical Information

Applications
10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Cable Entry
T568A/T568B
Cable Size
26-22 AWG
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 65 degrees C
Type
RJ45, Unshielded, Universal, Keystone, 8-Wire

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983717569
Color
Off White
Environmental Conditions
14 F
Product UPC
07498371756
UNSPSC
43223301
Used With
T568A/T568B Cable
Weight
0.4500 lb

Dimensions

Depth
1.16 Inch
Height
0.9 Inch
Overall Length
1.16 in
Width
0.65 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
