Product image for Allied Moulded Products 2302-NK 3-7/16 x 4 x 3-3/4 Inch 37 In. 2-Gang Angled Mid-Nail Switch/Receptacle Outlet Box
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

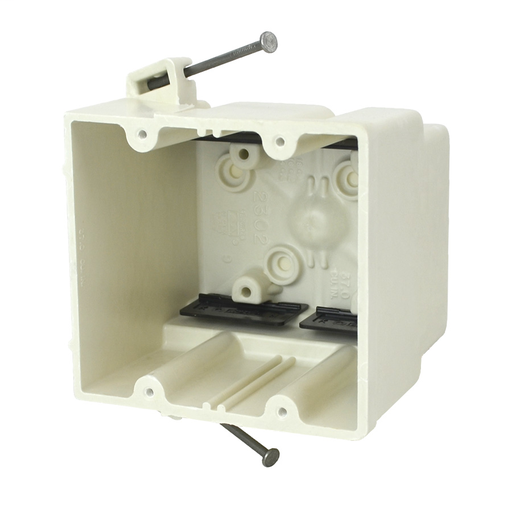

Allied Moulded Products 2302-NK 3-7/16 x 4 x 3-3/4 Inch 37 In. 2-Gang Angled Mid-Nail Switch/Receptacle Outlet Box

Manufacturer: Allied Moulded Products | Catalog # 2302-NK | Codale Part # 3516596
$7.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet
37.0 Cu. In. two gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, slot provision for low voltage divider, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls - Fiberglass reinforced polyester - thermoset box - Size:D=3 7/16", W=4", H=3 3/4" - Mount with Angled mid nails - Speed Klamps... factory installed

Technical Information

Applications
New work residential construction 2 HR fire resistive walls
Cable Entry
Eight "no tools" knockouts with 4 Speed "K" Clamps
Insulation Type
Nonconductive Nonmetallic
Material
Fiberglass
Mounting Type
Angled Mid Nails
Number of Gangs
2 Gang
Size
D=3 7/16", W=4", H=3 3/4"
Type
Two gang electrical box for use with nonmetallic sheathed cable

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
FIBERGLASSBOX

General Product Info

12-Digit UPC
085339130758
Color
Beige/Tan
Construction
Injection Molded
Product UPC
08533913075

Dimensions

Depth
3 Inch
Height
3 Inch
Width
4 in

Certifications and Compliance

Buy American Compliant
Y
  • ANSI / UL 514C: File No. E30594
  • New work residential construction 2 HR fire resistive walls
  • Machine tapped device holes, slot provision for low voltage divider, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed \"K\" Clamps factory installed
Additional Materials
  • Carbon steel fasteners
  • Polyvinyl chloride clamps
  • Wall Box
Fire Resistance Classification in Wall Assemblies 2-Hours or less
  • Shall be separated by a horizontal distance of not less than 3 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Fire Test of Building Construction Materials
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C
