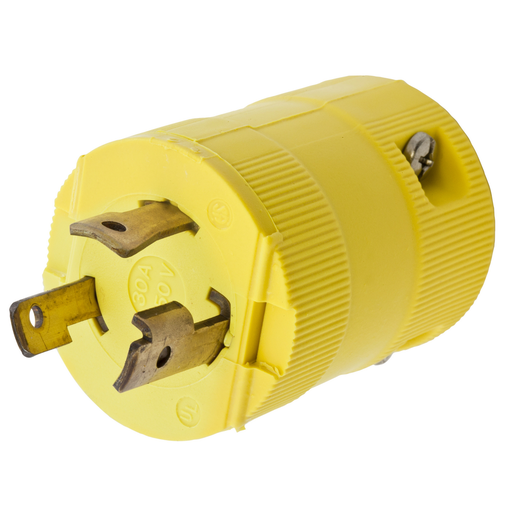

Hubbell Wiring Devices HBL2621VY 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30P Yellow Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2621VY | Codale Part # 3518837
$70.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Vasile®, Plug, 30A 250V, 2-Pole 3-Wire Grounding, NEMA L6-30P, Yellow Nylon.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-8 AWG
Cord Size
0.59 - 0.93 in
Cord Type
Portable
Current
30 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L6-30P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#8-32 Brass
Size
2.5 in x 1.78 in x 1.78 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
250 Volt
Wattage
7500 Watt
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585236025
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Housing Material
Yellow Nylon
Product UPC
78358523602
Weight
0.20 lb

Dimensions

Height
1.78 Inch
Length
2-1/2 Inch
Width
1.78 in

Certifications and Compliance

Country of Origin
USA
Features
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Standard Product
