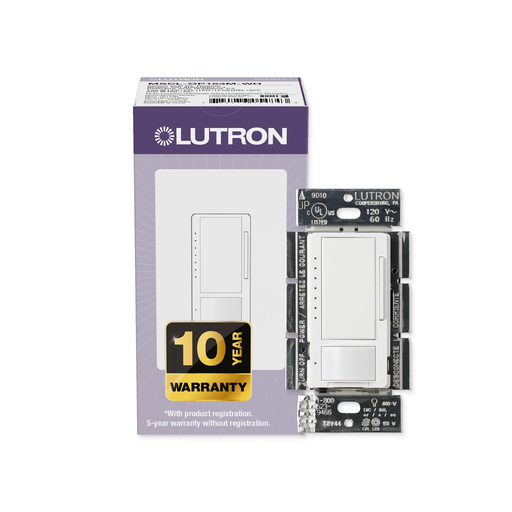

Lutron MSCL-OP153M-WH 120 VAC White 1-Pole/Multi-Location Motion Sensor Occupancy Light Switch and Dimmer

Manufacturer: Lutron Electronics | Catalog # MSCL-OP153M-WH | Codale Part # 3522568
$57.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Maestro occupancy LED+ passive infrared occupancy/vacancy sensor that automatically controls the lights in an area in white

Technical Information

Applications
For Lighting Control
Body Material
Plastic
Enclosure
Plastic
Enclosure Material
Plastic
Material
Plastic
Mounting Type
Wallbox, Flush
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Power Supply
120 V
Response Time
30 min
Sensing Range
900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Type
Passive Infrared
Standard
CUL,Title 20/24 Certified,UL
Temperature Rating
0 degrees C to 40 degrees C
Type
3-Way, Multi-Location, Indoor
Voltage
120 Volt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276054843
Color
White
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
Product UPC
78427605484
Used With
Single Standard Mechanical 3-Way switch or up to 9 Companion Dimmers/Switches
Weight
0.3100 lb

Certifications and Compliance

Country of Origin
China
Features
  • Includes (1) Maestro LED+ Motion Sensor Dimmer Switch; Gloss Finish
  • Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs; No Neutral or Ground required
  • Screw Terminal or Push-in Installation; 120V
  • Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R); compatible with an existing 3-way switch
  • Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
  • 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
  • Easy button programming mode available to customize dimmer and sensor functions such as timeout, occupied light level, and sensor mode
  • Complies with Title 20/24 Section 110.9 for automatic shutoff
  • Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Passive infrared sensors that automatically control the lights in an area
  • These sensors detect heat from occupants moving within an area to determine when the space is occupied
  • Combines a Maestro LED+ dimmer with an occupancy sensor
  • Controls CFL, LED, incandescent, and halogen load types
  • Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
  • Off warning fades lights to off over a period of 10 seconds
  • Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
  • Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
Standards and Certifications
  • UL
  • NOM
  • TITLE20
  • TITLE24
  • cUL
  • Title 20/24 certified
