Hoffman SF1316434 IP54 13" 571 Filter Fan 115V 7035

Manufacturer: nVent Hoffman | Catalog # SF1316434 | Codale Part # 3524444
$727.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cooling fan, side mount-standard, RAL 7035 light grey, 571 CFM (970 m /hr.), UV-resistant plastic standard. Click-fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Standard foam-in-place gasket. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
1.02/1.47 Amp
Applications
Industrial
Current
1.02 Amp
Frequency
50/60 Hz
Max Temperature
140 degrees F
Min Temperature
5 degrees F
Number of Phases
1 Phase
Size
12.72x12.72x5.51 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type

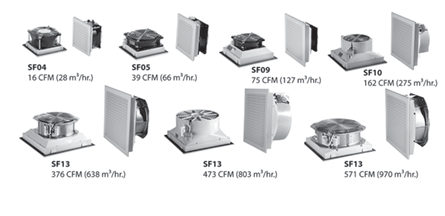

SF13 571 CFM (970 m3/hr.) Side-Mount Filter Fan
Voltage
115 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510202118
Finish
Gray
Product UPC
78351020211
Weight
10.14 lb

Dimensions

Depth
5.51 Inch
Height
12.72 Inch
Width
12.72 in
Features
  • Enclosure side wall mounting
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Standard foam-in-place gasket
  • Terminal wire connections
  • Simple snap-open grille for easy filter replacement
  • Similar cut-out sizes as other filter fan manufacturers
  • Optional thermostat available to save energy and extend service life
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
Applications
  • Automotive assembly
  • Wind energy systems
  • Food and beverage process controls
  • Industrial automation
  • Package handling equipment
Accessories
  • Thermostat
  • Rain shroud
  • Replacement filters
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications
  • Service life hours from 40000 to 70000 hours
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
