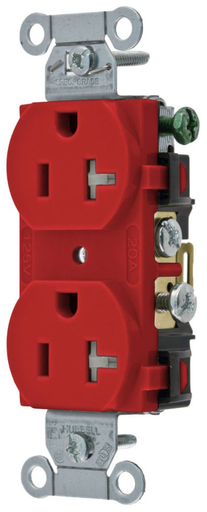

Hubbell CR20RTR T-RES, COM GRD, 20A 125V, 5-20R, R, SW

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CR20RTR | Codale Part # 3524790
$4.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Commercial Grade, Smooth Face, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Side Wired Only, Red

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Conductor Size
14-12 AWG
Current
20 Amp
Grade
Commercial
Grounding
Self-Grounding
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Tc Connection
Back and Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585197616
Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358519761
Weight
0.1500 lb

Dimensions

Height
1.3 Inch
Length
4.2 Inch
Width
1.500 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy Access Split Circuit Tab
  • Fork Terminal Capable
  • Smooth Face
  • Triple Wipe Contacts
Additional Information
  • Power Rating 2500 Watt
  • Dielectric Voltage 2000 Volt
  • Wire Size 12 to 10 AWG
  • Temperature Rating -40 to 75 Deg C
