Hubbell HBL5342I 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5342I | Codale Part # 3528339
$30.71/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Compact
Base Material
PBT
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
1 hp
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. WC596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Side Wired Only
Type
Duplex
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585434803
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Heavy Duty
Product UPC
78358543480
Weight
0.25 lb

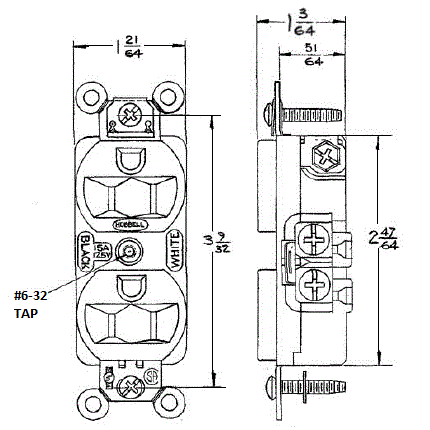

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Slender/compact design
  • Brass Mounting Strap
  • Triple wipe contacts
  • Compact design and Self Grounding
