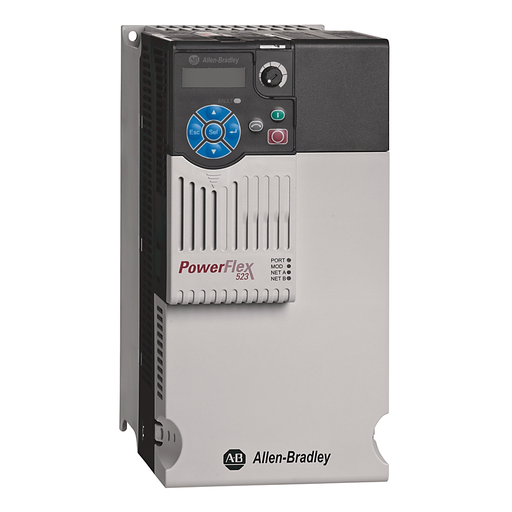

Allen-Bradley 25A-D043N114 480 VAC 43 Amp 3-Phase AC Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 25A-D043N114 | Codale Part # 3528863
$5,650.01/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
PowerFlex 523 22kW (30Hp) AC Drive

Technical Information

Amperage
43 Amp
Applications
22 kW (30 Hp),380-480V AC Input,50 Hz/60 Hz43Amp,E Frame,Panel Mounting,IP20/NEMA Open,EMC Filter,with 7th IGBT Brake
Enclosure Rating
IP20
Enclosure Type
Frame E, IP20, NEMA Open
IP Rating
IP20
Number of Phases
3 Phase
Output
43 A
Output Current
43 A
Power Rating
22 kW
Size
E
Standard
C-TICK,CE,CUL,KC,UL
Type
Open Type
Voltage
480 Volt
Wattage
22 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 523

General Product Info

12-Digit UPC
885630952475
Environmental Conditions
-20 to 50 C Surrounding Air Temperature
Product UPC
88563095247
Weight
34.3200 lb

Dimensions

Depth
279 Inch
Width
185
Features
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
  • Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode
  • Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive
  • Supports low-cost networking through an integrated RS485/DSI port
