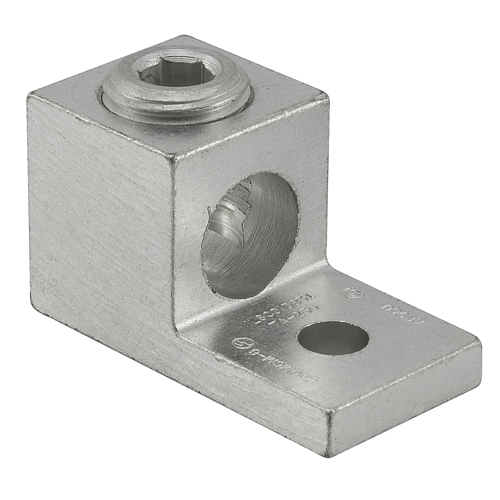

Image thumbnail 2
Email

Ilsco TA-250 Aluminum Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 5/16in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-250 | Codale Part # 3528901
$7.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles

Technical Information

Applications
Terminating Connector
Conductor Size
6 AWG-250 kcmil
Conductor Type
Aluminum
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
16/64 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669889420
Color
Silver
Finish
Tin Plated
Product UPC
78366988942
Weight
0.266 lb

Dimensions

Height
1.122 Inch
Length
1.984 Inch
Width
0.99 in
