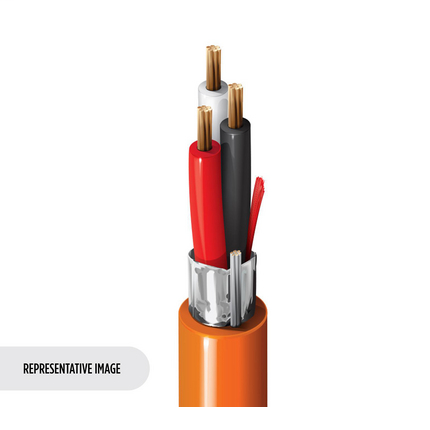

Product image for BELDEN 5301FE 008U1000 18/3C (X) OAFS 300V CMR GRY CBOX (OD .171)
Image thumbnail 0
Image thumbnail 1
Email

BELDEN 5301FE 008U1000 18/3C (X) OAFS 300V CMR GRY CBOX (OD .171)

Manufacturer: Belden | Catalog # 5301FE | Codale Part # 353056
$984.24/m (1000 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
5,000 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Security & Commercial Audio Cable, Riser-CMR, 3-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Technical Information

Amperage
5 Amp per Conduc-r at 25 C
Applications
For Intercom/PA Systems, Sound/Audio Systems
Bend Radius
1-5/8 in
Conductor Material
Bare Copper
Conductor Size
18 AWG
Insulation Material
Polypropylene
Insulation Thickness
0.009 in
Material
PVC
Number of Conductors
3
Resistance
6.5 ?/1000 ft
Shield Type
Tape
Shielding Type
Overall Foil Tape
Stranding
7x26
Temperature Rating
-20 to 75 degrees C
Type
Shielded, Sound
Voltage
300 Volt

Manufacturer Information

Brand
Belden

General Product Info

12-Digit UPC
781600000101
Environment
Indoor,Riser
Jacket Color
Gray
Jacket Material
PVC
Jacket Thickness
0.017 in
Product UPC
5301FE008U1000
Weight
24 lb/1000 ft

Dimensions

Outside Diameter
0.171 in
Suitable Applications
  • Intercom/PA Systems, Sound/Audio Systems
