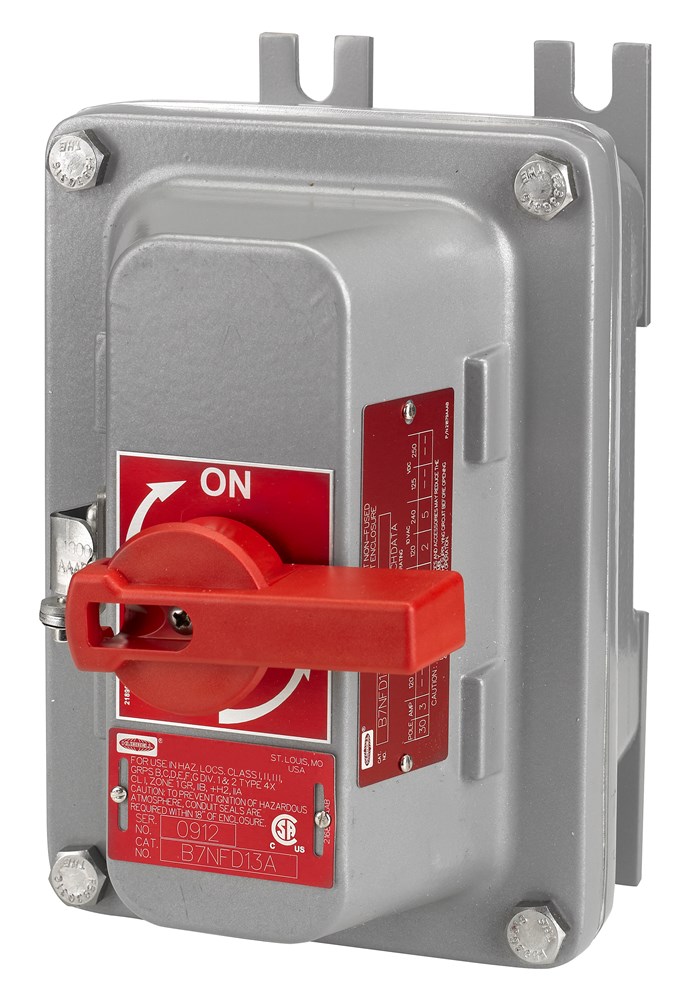

Product image for Hubbell HBLB7NFD13A NONFUSED HAZ LOC DISC 30A 3P 600V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

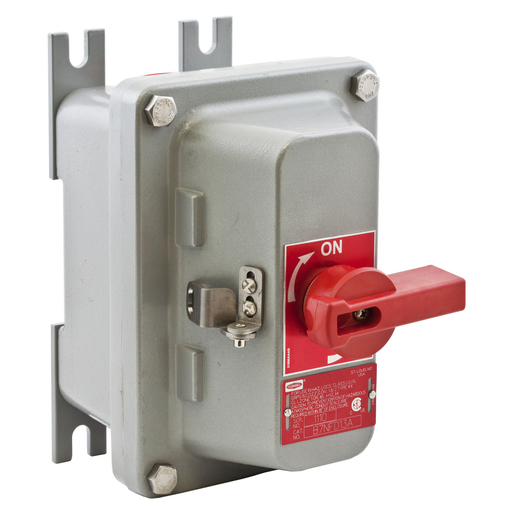

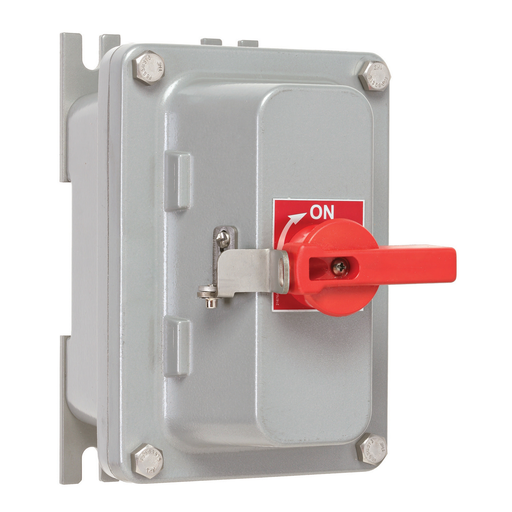

Hubbell HBLB7NFD13A NONFUSED HAZ LOC DISC 30A 3P 600V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLB7NFD13A | Codale Part # 3530685
$4,709.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Disconnect Switches, Non Fused, Hazardous Location, 30A 600V AC, 3-Pole

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
30A
Current
30 Amp
Enclosure
Metallic
Horsepower
30 hp
Material
Aluminum
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Size
8.13 in x 5.75 in x 6.31 in
Standard
UL98
Tc Connection
Terminal Screws
Type
Switch Only
Voltage
600 Volt
Wattage
18000 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock

General Product Info

12-Digit UPC
783585242590
Color
Gray
Environmental Conditions
Indoors or Outdoors or Hazardous Atmosphere
Product Series
Disconnect Switch
Product UPC
78358524259
Weight
11.2500 lb

Dimensions

Height
6.31 Inch
Length
8.13 Inch
Width
5.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Copper-free aluminum construction to prevent corrosion
  • Compact NEMA 4X enclosure and footfrint allows easy installation
  • Lockable handle to meet OSHA Lockout/Tagout regulations
