Panduit ABM100-S6-C Cable Tie Mount, #6 Screw (M3), 1"x1" (25.4mm x 25.4mm), WH

Manufacturer: PANDUIT | Catalog # ABM100-S6-C | Codale Part # 3533003
$206.60/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

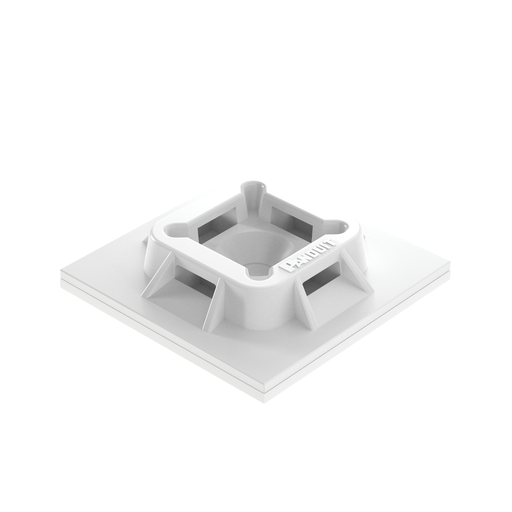

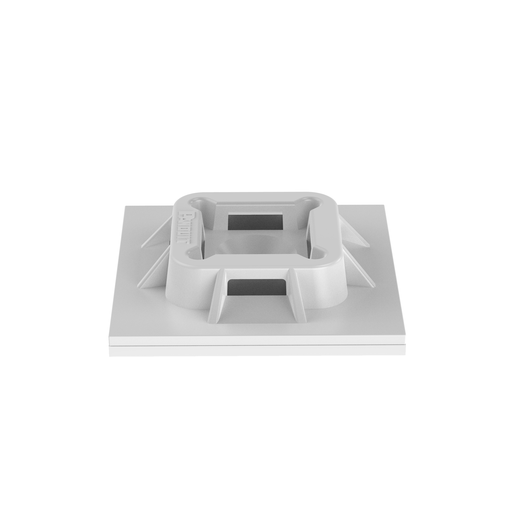

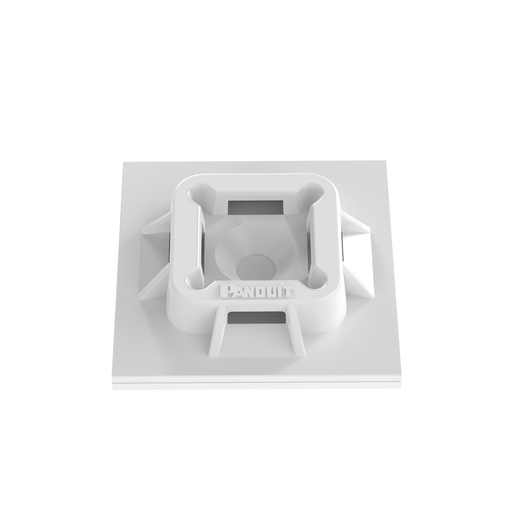

The cable tie mount in white is mounted with a #6 (M3) screw or user supplied adhesive. It is 1" long x 1" wide (25.4 x 25.4 mm), made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.

Technical Information

Applications
Indoor
Material
Nylon
Max Operating Temperature
185 degrees F
Min Operating Temperature
-60 degrees C
Mounting Type
Adhesive Tape
Operating Temperature
-76degrees F (-60degrees C) - 185degrees F (85degrees C)
Type
Cable Tie Mount

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983384457
Color
White
Environment
Outdoor
Product UPC
07498338445
UNSPSC
39121717
Weight
0.0034 lb

Dimensions

Height
0.2 Inch
Overall Length
1 in
Width
1 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant
