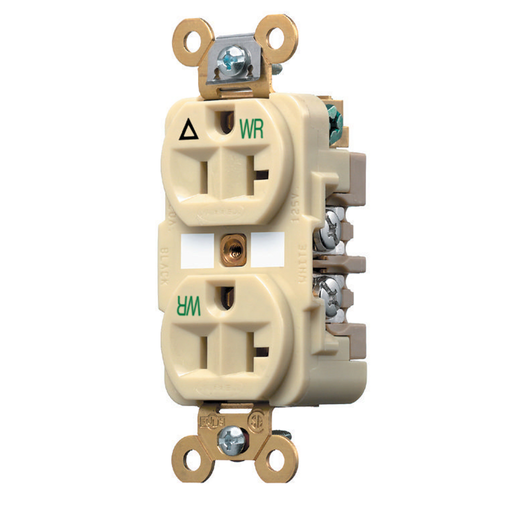

Product image for HCI IG5362IWR WR RCPT, DUP, SB, IG
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HCI IG5362IWR WR RCPT, DUP, SB, IG

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG5362IWR | Codale Part # 3533710
$74.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather Resistant Duplex, Commercial/Industrial Grade, Isolated Ground, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Ivory.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. WC596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired Terminal Screws
Type
Duplex
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585320434
Color
Ivory
Environmental Conditions
Weather Resistant
Product Series
Heavy Duty
Product UPC
78358532043
Weight
0.2 lb

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Triangle marking on face indicates isolated ground
  • Weather-resistance complies with national electrical code requirements
  • Slender/compact design
  • Isolated Ground and Weather Resistant
