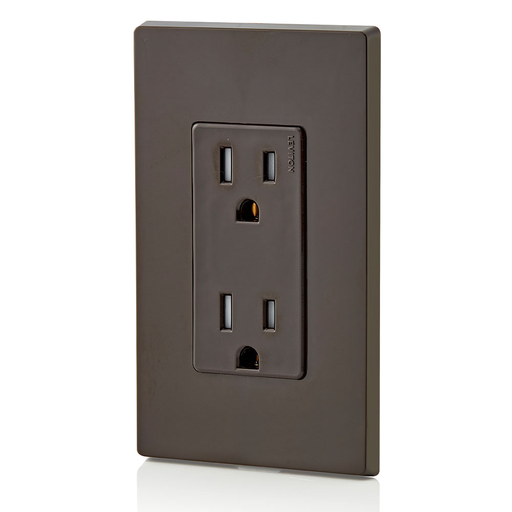

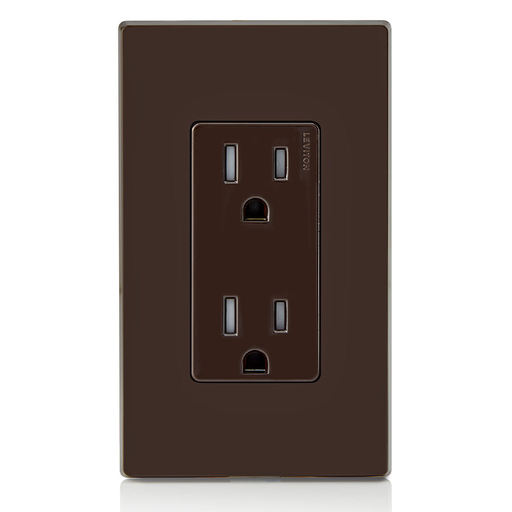

Leviton T5325 15amp 125v Tamper-Resistant Decora Duplex Receptacle, Brown

Manufacturer: Leviton | Catalog # T5325 | Codale Part # 3533852
$6.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
15 Amp 125 Volt, Tamper Resistant, Decora Duplex Receptacle, Straight Blade, Grounding, Brown

Technical Information

Amperage
15 Amp
Applications
Commercial
Conductor Size
14 AWG
Connection Type
Quickwire Push-in and Side Wire
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Claw and Screw, Wallplate, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.2 H x 1.33 W x 0.76 D IN
Standard
CSA,UL
Tc Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Tamper-Resistant, 2-Outlet, 1-Unit
Voltage
125 Volt
Wire Count
3
Wire Size
14 AWG
Wire Type
Grounding

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477381595
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847738159

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
USA
Color Variations
  • Black
Features
  • Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Shallow depth for maximum wiring room
  • Double-wipe power contacts for reliable conductivity and plug retention
  • Heavy-gauge zinc-plated steel mounting strap
  • Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • TR symbol on strap assures they meet the latest NEC requirements
  • Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
  • Limited 2-year warranty
  • SAFE Tamper-resistant offers protection from electrical shocks
  • DURABLE - Impact-resistant thermoplastic nylon construction
  • EASY - Quickwire push-in and side wiring for easy installation
  • CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
NEMA
  • 5-15R
