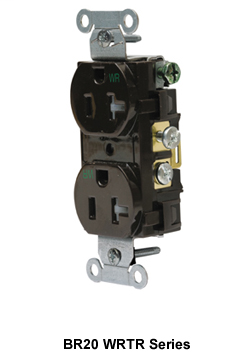

Hubbell BR20ALWRTR WTR/TAMP, COM GRD, 20A 125V, 5-20R, AL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR20ALWRTR | Codale Part # 3535693
$8.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Straight Blade Devices, Receptacles, Tamper and Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Almond, Single Pack

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Grade
Commercial Specification
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rating
125 V
Screw Material
Steel, Zinc Plated
Size
Standard
Tc Connection
Back and Side Wired
Type
Traditional, Tamper and Weather Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585144689
Color
Almond
Product UPC
78358514468
Weight
0.210 lb

Certifications and Compliance

Certifications
C22.2,Certified To CSA,Guide RTRT Fed Spec WC596G,Meets WD-1 Heavy Duty And WD-6 Requirements,No. 42 File 285.,UL Listed To UL498 File E2186
