Panduit NE4X4WH6 Slotted Duct, Halogen Free,4"X4"X6',White

Manufacturer: PANDUIT | Catalog # NE4X4WH6 | Codale Part # 3536648
$202.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

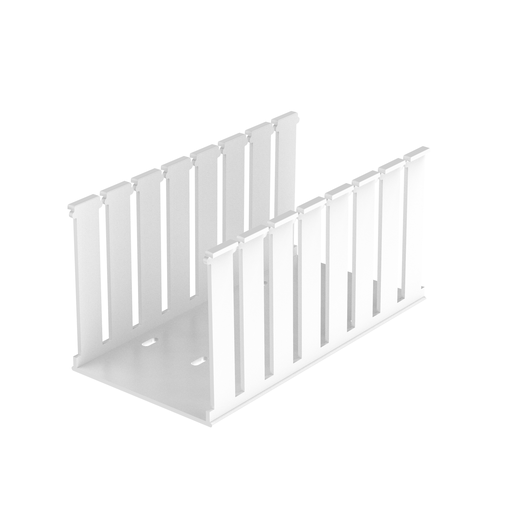

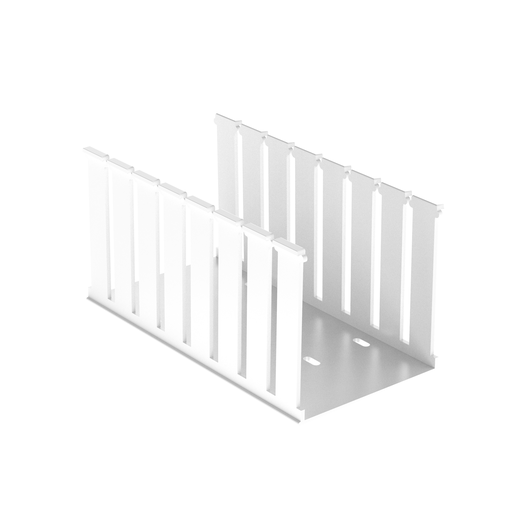

The NE4X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06" x 4.14" (103.1 mm x 105.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.

Technical Information

Applications
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Material
Polyphenylene Oxide
Mounting Type
DIN Standard Mounting Holes
Size
4.00 x 4.00
Tc Connection
Standard
Type
Base Wiring Duct

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983215164
Color
White
Product UPC
07498321516
Weight
2.6040 lb

Dimensions

Height
4.06 Inch
Length
1.8 m
Overall Length
6 ft
Thickness
0.08 IN
Width
4.14 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
