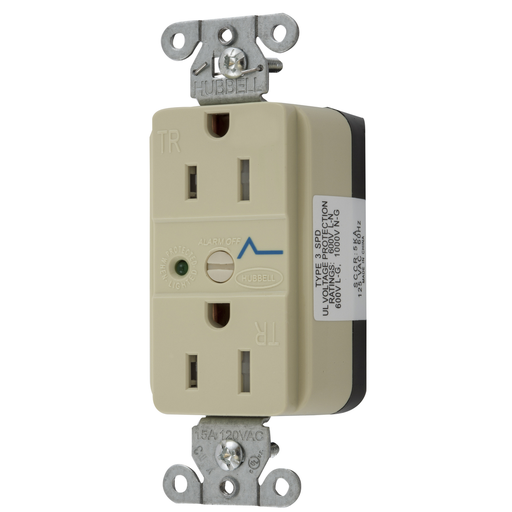

Hubbell SNAP5262IS SNAP SPD Receptacle, 15A 125V, TR, IVORY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP5262IS | Codale Part # 3537193
$171.48/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, 2-Pole 3-Wire Grounding, Surge supression, Tamper-Resistant, LED Indicator, 15A 125V, 5-15R, Nylon, Ivory

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Specification Grade
Conductor Size
12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.75 in x 1.75 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Connectorized
Type
Surge Protection Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585252025
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358525202
Weight
0.2 lb

Dimensions

Height
1-3/4 Inch
Length
3.28 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Surge supression, Tamper-Resistant, LED Indicator
  • Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
