Greenlee GTS-THHN Copper Cable Stripper Bushing Kit

Manufacturer: Greenlee | Catalog # GTS-THHN | Codale Part # 3537584
$1,280.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

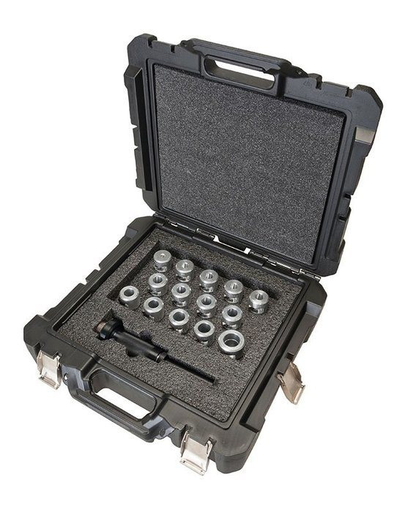

Bushing Kit GTS 1930 THNN CU. 14 bushing kit ranging from #6 AWG - 500 MCM THHN copper conductor. Tension grip depth stop. Self contained 4" laser etched depth stop for precise articulation of cut back depth, no additional tools needed for depth stop set up. Spring loaded retention pin. Quick attachment method of cable specific bushings, no additional tools needed for bushing attachment. Replaces the need to use blades when stripping cable. Blade lacerations comprise approximately 40 percent of all recordable injuries on the jobsite.

Technical Information

Applications
THHN Copper Cable End Stripping
Capacity
THHN Copper Conductor #6 AWG - 500 MCM
Handle Type
Knurled One Way Bearing
Material
Aluminum

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310027355
Finish
Anodized,Black
Product UPC
78331002735
Weight
5 lb

Dimensions

Overall Length
6.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • 14 bushing kit ranging from #6 AWG - 500 MCM THHN copper conductor
  • One way ratchet handle allows user to maintain control of the cutback throughout the stripping process, ensuring blade does not come into contact with the conductor
  • Tension grip depth stop Self contained 4 laser etched depth stop for precise articulation of cut back depth, no additional tools needed for depth stop set up
  • Spring loaded retention pin Quick attachment method of cable specific bushings, no additional tools needed for bushing attachment
  • Safety factor Replaces the need to use blades when stripping cable. Blade lacerations comprise approximately 40% of all recordable injuries on the jobsite.
Application
  • THHN Copper Cable End Stripping
