LEV DSL06-1LZ WH/IV/LA DEC SLIDE UN

Manufacturer: Leviton | Catalog # DSL06-1LZ | Codale Part # 3541100
$53.11/ea
ea
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

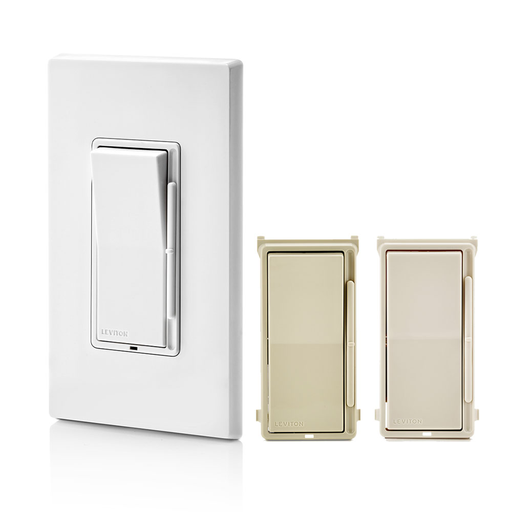

Replace a wall light switch with an Decora Slide dimmer switch. 300W LED, 600W incandescent/halogen, 60Hz, single pole or 3-way installation. Can be installed with or without a neutral wire, use with Decora wallplate or Decora Plus Screwless Wallplate sold separately . White with ivory and light almond faceplates

Technical Information

Action
Slide Bar For Lighting Level Control,Switch
Applications
For Commercial use, CFL/LED, Incandescent Lighting Control
Frequency
60 Hz
Material
Plastic
Number of Poles
3 Pole
Power Rating
600 W Incandescent, 300 W LED and CFL
Standard
NOM,cCSAus
Style
Decora
Switch Type
3-Way,Single-Pole
Torque
14 lb-in
Type
Slide, Push Button
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477692325
Color
Ivory,Light Almond,White
Product UPC
07847769232
Weight
0.3500 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Patents
  • CA2798964
  • CA2869845
  • MX321054
  • US11903105
  • US8664886
  • US8944859
  • US9431192
  • US9543667
  • US9681526
Features
  • Integrated linear full-range slide control for easy, precise operation
  • Separate On/Off switch, to preserve set light level when turned off

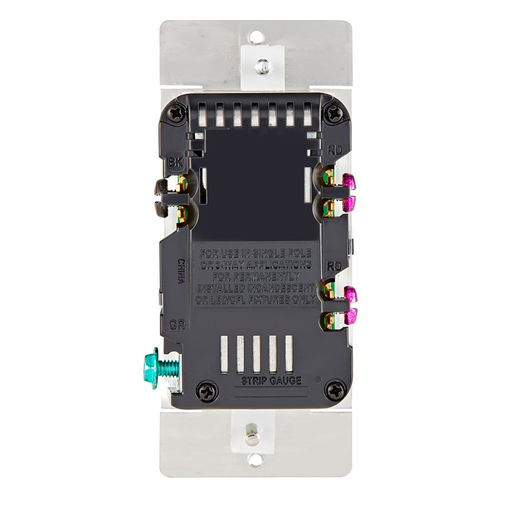

  • Slim, compact housing fits easily into a standard wall box
  • Works with existing wiring, no neutral wire required for installation
  • Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatiblity tool
  • Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance

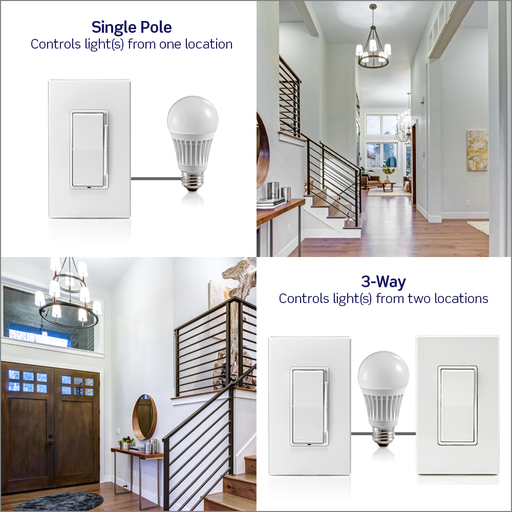

  • Control the lights from two locations using the DSL06 in the main location and a 3-way switch (sold separately) in the second location

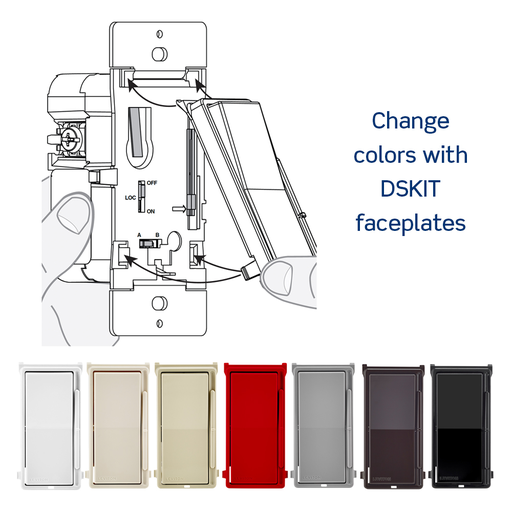

  • Easily change the color using DSKIT faceplates available in white, ivory, light almond, gray, black, brown and red
  • CONVENIENT An easy way to create a big impact for a minimal cost and customize the light level in any room, for any occasion and in any home
  • EASY TO INSTALL Slim profile for easier installation. Works with existing wiring, no neutral wire required for installation
  • PRACTICAL Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatibility tool by clicking the \"find an LED bulb\" button below
  • CUSTOMIZEABLE adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
  • VERSATILE Control the lights from two locations using the DSL06 in the main location and a 3-way switch (sold separatly) in the second location
  • STYLISH Easily change the color using DSKIT faceplates available in white, ivory, light almond, gray, black, brown and red
  • Now available in bulk pack - white color only
