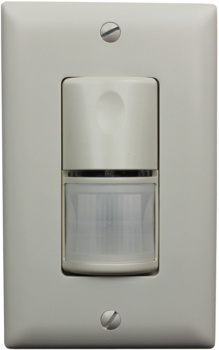

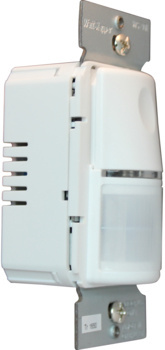

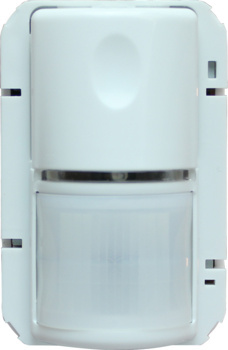

Wattstopper WS-301-W Passive Infrared Wall Switch Occupancy Sensor, 120/277V - White

Manufacturer: Legrand WattStopper | Catalog # WS-301-W | Codale Part # 3542547
$119.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
WattStopper® Passive infrared (PIR) wall switch sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate. 180. coverage, maximum of 900 sq-ft shallow (1 inch) back housing and flying leads for easy installation. Built-in light level sensor. Optional neutral connection with break off tab to expose neutral terminals. Button provides positive tactile feedback. Load: 120 VAC, 0 to 1000 W ballast, LED, tungsten, 1/6 HP. 277 VAC, 0 to 1200 W ballast, LED, 1/6 HP.

Technical Information

Applications
For Offices, Conference Rooms, Lunch/Break Rooms
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Input Voltage
240/277 VAC, 120 V
Load Rating
1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Material
Plastic
Mounting Type
Wall
Number of Poles
1 Pole
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
900 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor
Temperature Rating
35 degrees C
Type
Indoor
Voltage
277 Volt

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935383
Color
White
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
Product UPC
75418293538
Weight
0.3800 lb

Dimensions

Depth
1.55 Inch
Height
2.6 Inch
Length
2.6 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Custom two-tier Fresnel lens enhances detection at the desktop level
  • Light level sensor holds lights off when ambient lighting is above the preset level
  • Patented voltage drop protection
  • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
  • Adjustable time delay and sensitivity
