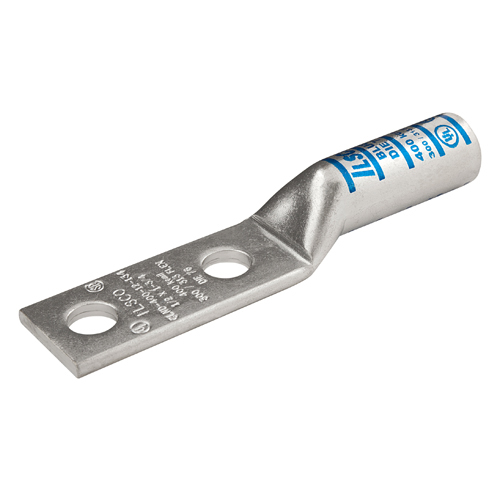

Image thumbnail 2
Email

Ilsco CLND-400-12-134 SureCrimp® Copper Compression Lug, Conductor Size 400, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CLND-400-12-134 | Codale Part # 3543107
$32.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 400 kcmil, no sight window, Square tang end, flex conductor range 300 G,H,I,K,M 313.1 DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-76,

Technical Information

Applications
Copper Compression Lug
Barrel Length
2.125 in
Barrel Type
Long
Bolt Size
1/2 IN
Color Coding
Blue
Conductor Material
Copper
Conductor Size
400 MCM
Conductor Type
Flex,Stranded
Connection Type
Compression
Direct Burial?
Yes
Material
Copper
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:5.792;W:1.365;H:0.981 IN
Standard
CSA File Number: LR-29601,UL Specifications: UL 486A-B,NEBS Rating: LEVEL 3,UL File Number: E6207
Strip Length
55.549 mm
Temperature Rating
90 degrees C
Type
CLND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669645026
Color
Silver
Product UPC
78366964502
Weight
0.427 lb

Dimensions

Height
0.981 Inch
Inside Diameter
0.75 in
Length
5.792 Inch
Outside Diameter
0.936 in
Width
1.365 in
