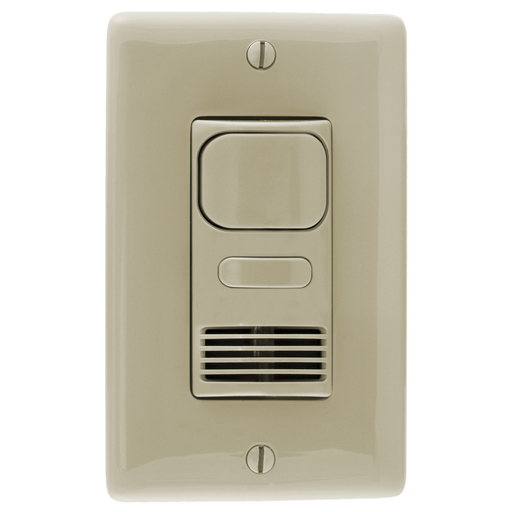

Hubbell AD2000I1 120/277 Volt 1000 Square Foot Ivory Ultrasonic and Passive Infrared Wall Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # AD2000I1 | Codale Part # 3543574
$199.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Occupancy Sensing Products, Wall Switch,Occupancy or Vacancy, Dual Tech, 1 Relay, 1000 Square Feet, 800WIncandescent, 1000W Fluorescent @ 120V AC, 1800W Fluorescent @ 277V AC,120/277V AC, With Photocell, Ivory

Technical Information

Applications
Single Circuit
Operating Temperature
0 Degrees C to 40 Degrees C

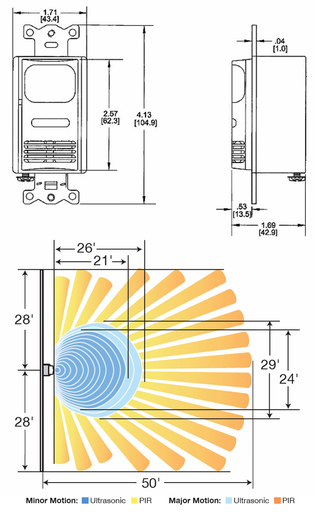

Sensing Range
1000 Square Foot
Type
Wall Sensor Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
H-MOSS

General Product Info

12-Digit UPC
783585413235
Color
Ivory
Product Series
Dual
Product UPC
78358541323
Weight
0.3400 lb

Dimensions

Height
2-1/2 Inch
Length
3.4 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
China
Features
  • Dual technology sensing combines the individual advantages of passive infrared and ultrasonic detection
  • No neutral required
  • Built in photocell with manual super saver mode for daylight harvesting
  • Impact resistant hard lens is standard and color matched to the switch
