Panduit LAMA6-14-QY 1-Hole 1 Barrel Aluminum Mechanical Lug

Manufacturer: Panduit | Catalog # LAMA6-14-QY | Codale Part # 3545010
$96.36/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
125 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

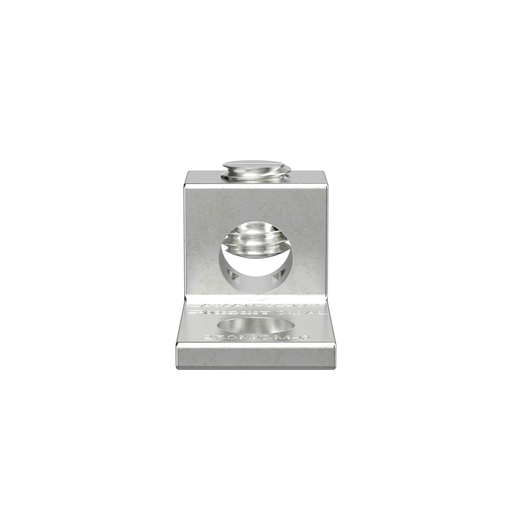

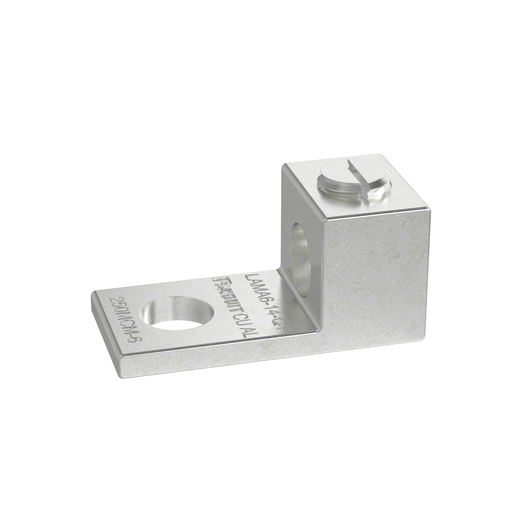

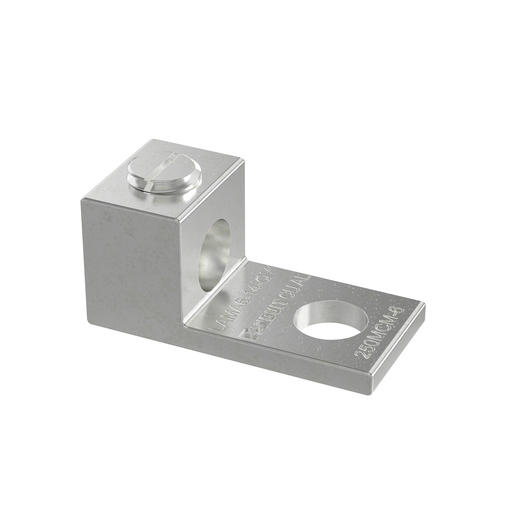

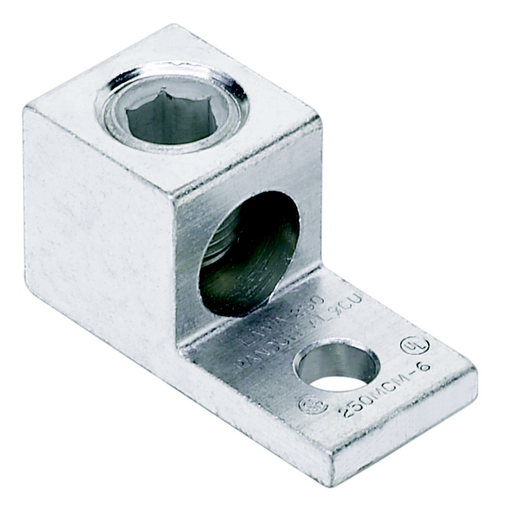

The LAMA6-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

Technical Information

Barrel Length
0.37 in
Base Material
Aluminum
Bolt Size
6.35 mm
Conductor Size
14-6 AWG
Conductor Type
Aluminum and Copper
Material
Aluminum
Number of Conductors
1
Stud Hole Size
1/4 in
Temperature Rating
90 degrees C
Tongue Thickness
0.09 in
Tongue Type
Straight
Tongue Width
0.5 in
Type
Single Barrel, Non-Insulated
Voltage
600 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983596195
Color
Metallic
Finish
Tin Plated
Product Type
Power Connectors
Product UPC
07498359619
Weight
0.1200 lb

Dimensions

Height
1/2 Inch
Length
1.06 Inch
Overall Length
1.06 in
Width
0.5 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No

Certifications & Compliance

Prop 65 Warning
No
