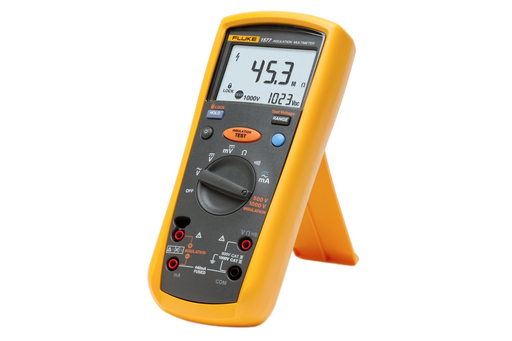

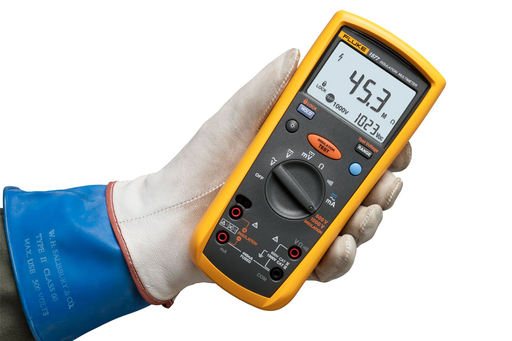

Fluke FLUKE-1577 1000 Volt Insulation Digital Multimeter

Manufacturer: Fluke Instruments | Catalog # FLUKE-1577 | Codale Part # 3545738
$1,011.91/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Two powerful tools in one. The Fluke 1577 Insulation Multimeter combines a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks and at a cost that is far less than buying the two products.

Technical Information

Accuracy
Voltage DC: (0.09%+2); Voltage AC: (2%+3)
Amperage
400m Amp
Applications
Troubleshooting and preventative maintenance
Enclosure
Hard Plastic
Enclosure Material
Hard Plastic
Operating Temperature
20 To 55 degrees C
Resistance
50 megohm
Storage Temperature
-40 To 60 degrees C
Type
Insulation Multimeter
Voltage
1000 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969262965
Product UPC
09596926296
Weight
624 g

Dimensions

Warranty Length
3 yr
Key Features
  • Insulation test voltages 500 V, 1000 V
  • Insulation test: 0.1 M? to 600 M?
  • Auto discharge of capacitive voltage
  • AC/DC Voltage
  • DC millivolts
  • AC/DC milliamps
  • Resistance (0.1 ? to 50 M?)
  • Continuity
  • Three-year warranty
  • Remote probe, test leads, alligator clips
  • Rugged, utility hard case
  • Auto power off to save battery power
  • True RMS
  • Large display with backlight
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAK
  • magnetic hanging system to free your hands for other work
Includes
  • Remote probe
  • Test leads
  • Alligator clips
  • Hard case
  • Four AA alkaline batteries
  • Quick reference guide
  • CD rom with manual
Product Overview
  • Two powerful tools in one
  • The Fluke 1587 and 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
  • Whether you work on motors, generators, cables, or switch gear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.
