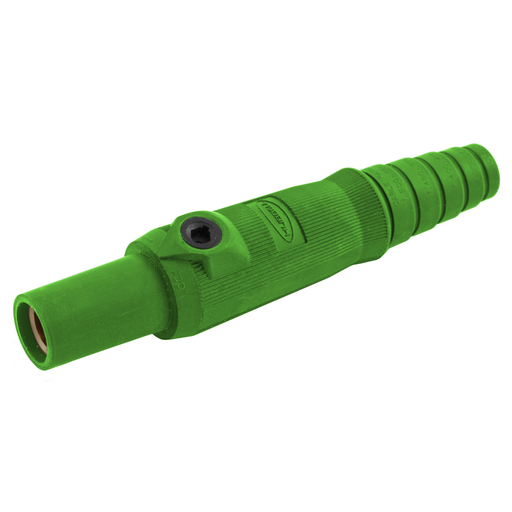

Product image for Hubbell HBL15FGN SINGLE POLE SER 15 FeMale Plug, 150A, GN
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL15FGN SINGLE POLE SER 15 FeMale Plug, 150A, GN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL15FGN | Codale Part # 3545945
$100.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Single Pole Products, Female Plug, 150 Amp Series, Green

Technical Information

Amperage
150 Amp
Applications
Temporary Electrical Power
Current
150 Amp
Material
Brass
Number of Conductors
1 Conductor
Number of Poles
1-1 Pole
Size
Standard
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Female
Tc Connection
Set Screw
Temperature Rating
-40 degrees C
Type
Plugs
Voltage
600 AC or 250 DC Max Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585458410
Color
Green
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Series 15
Product UPC
78358545841
Weight
0.1800 lb

Dimensions

Height
1-1/2 Inch
Length
8 Inch
Width
1.860 in

Certifications and Compliance

Country of Origin
China
Features
  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
  • Easily Identifiable Cable with cut off points for secure fit
  • Standard Product
