Burndy KCKF23 Mechanical Bulkhead Ground Connector Kit; Accommodates: #8 - #2 AWG Stranded, #10 - #1 AWG Solid Copper; Nut Torque: 275 in-lbs

Manufacturer: Hubbell-Burndy | Catalog # KCKF23 | Codale Part # 3546370
$92.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
BulkHead Servit, #8 - #2 AWG STR, #10 - #1 AWG Sol , Nut Torque- 275 Lbs

Technical Information

Applications

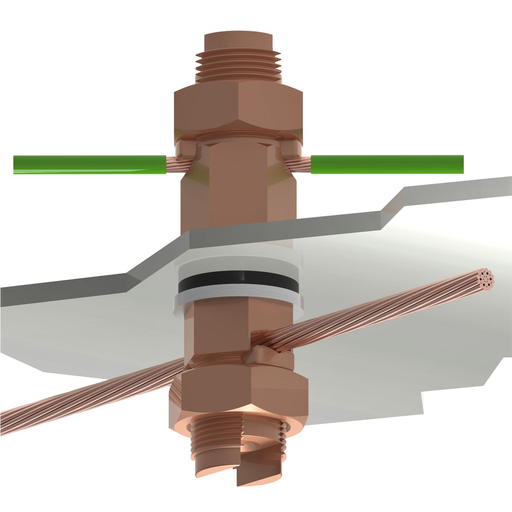

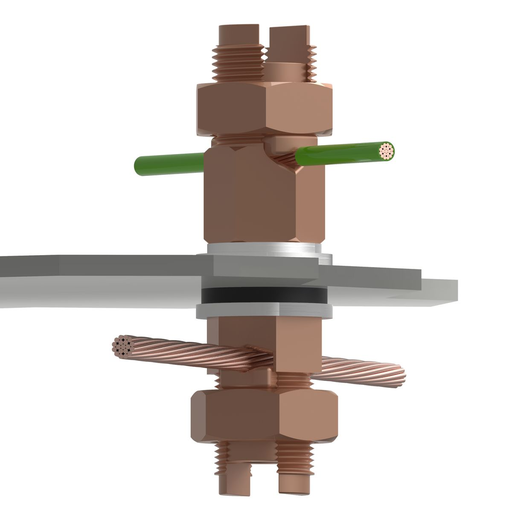

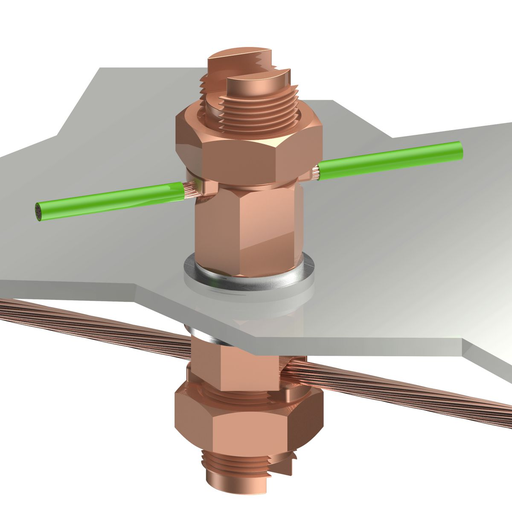

Designed to allow a ground wire to be connected from the inside of a box or enclosure to the outside of a box or enclosure
Conductor Size
2 AWG
Material
Copper
Plated?
No
Plating Type
Unplated
Type
Bulkhead Servit

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810567432
Product UPC
78181056743
Weight
0.2660 lb

Dimensions

Height
2.791 Inch
Length
0.925 Inch
Width
0.802 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Designed to allow a ground wire to be connected from the inside of a box or enclosure to the outside of a box or enclosure
