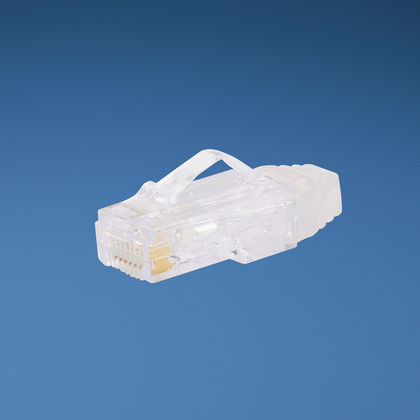

Product image for Panduit SP630-C Category 6 UTP Modular Plug, 30 AWG, 100 Pack
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

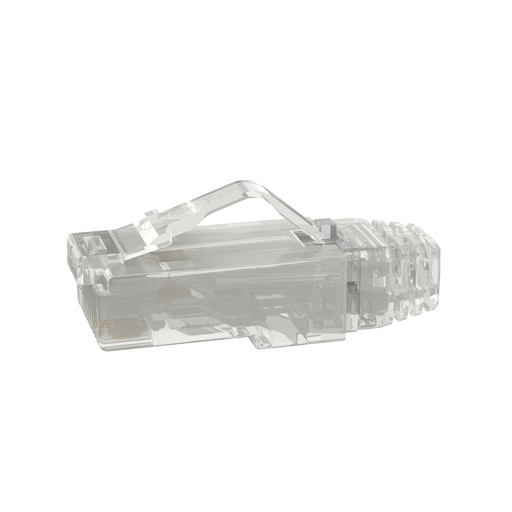

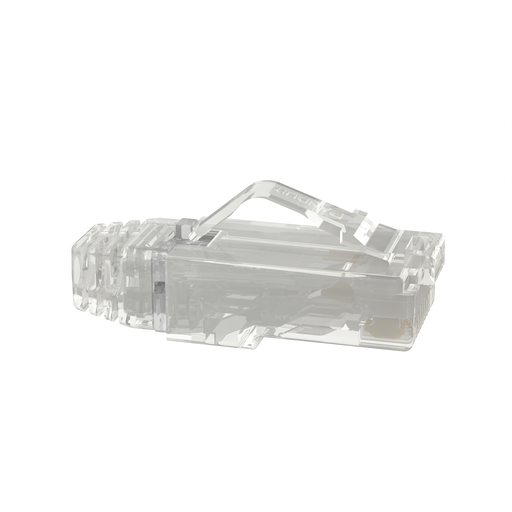

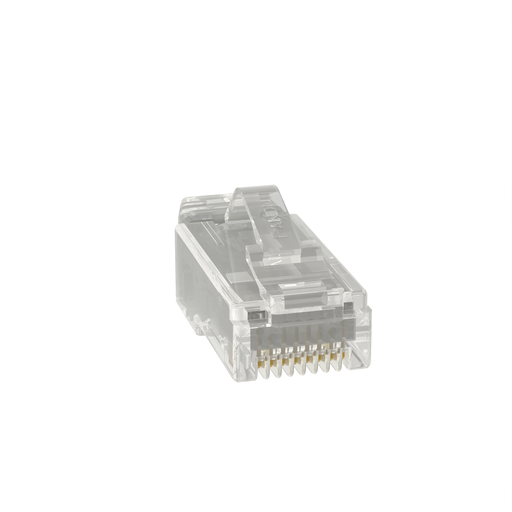

Panduit SP630-C Category 6 UTP Modular Plug, 30 AWG, 100 Pack

Manufacturer: Panduit | Catalog # SP630-C | Codale Part # 3550725
$6.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Category 6 UTP Modular Plug, 30 AWG, is used to terminate 4-pair, 30 AWG, UTP twisted-pair cabling.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
30 AWG Stranded
Cable Type
Category 6
IP Rating
IP20
Material
Polycarbonate
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 60 degrees C
Type
Unshielded, 8-Wire

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Plug®, TX6™ Plus

General Product Info

12-Digit UPC
074983638048
Color
Clear
Environmental Conditions
Indoor Dry, -40 to 158 F Storage
Product UPC
07498363804
UNSPSC
43223301
Used With
T568A/T568B Cable
Weight
0.7768 lb

Dimensions

Depth
1.26 Inch
Height
0.52 Inch
Width
0.46 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Meets TIA/EIA Category 6 and ISO Class E performance requirements for NEXT and RL when property terminated to category compliant cable, IEC 60603-7, UL 1863, CSA Standard C22.2, RoHS compliant
